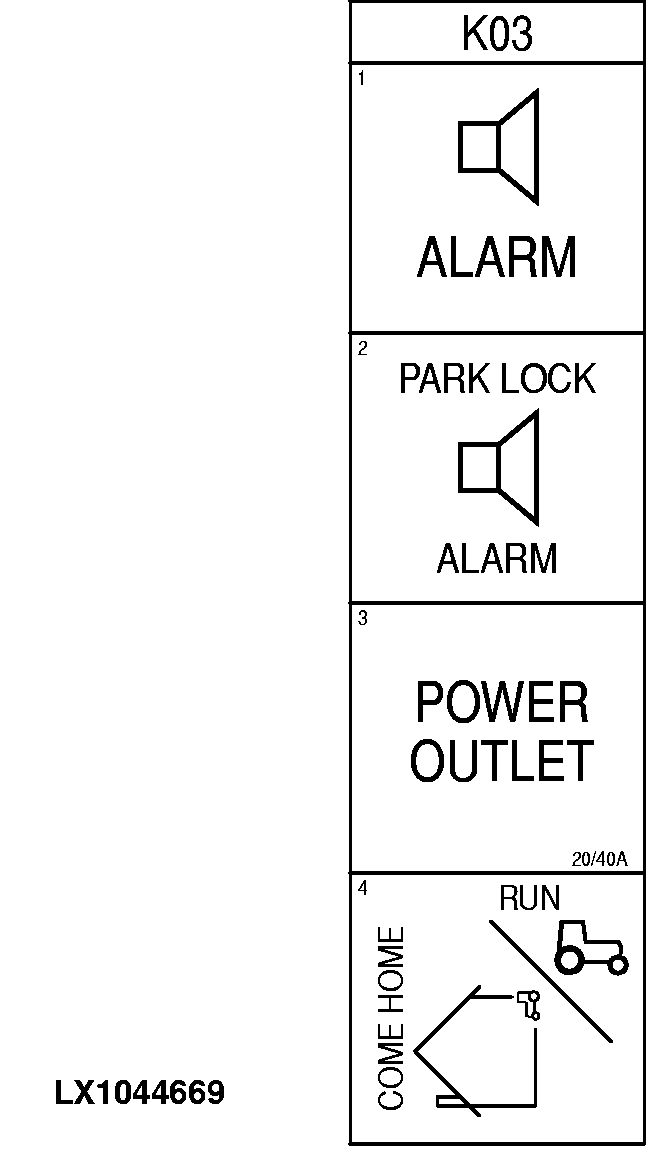

Relays K03 (AutoPowr/IVT)
LX1044669-UN-23NOV07
|
Number |
Capacity (amps) |
Designation |
|---|---|---|
|
K03/01 |
- |
Acoustic alarm |
|
K03/02 |
- |
Acoustic alarm for park lock |
|
K03/03 |
20/40 amps |
Relay for 3-terminal socket, power outlet strip, 7-terminal socket (SAE) |
|
K03/04 |
- |
Plug for "come home" mode |
|
OU12401,000192C-19-20071210 |
