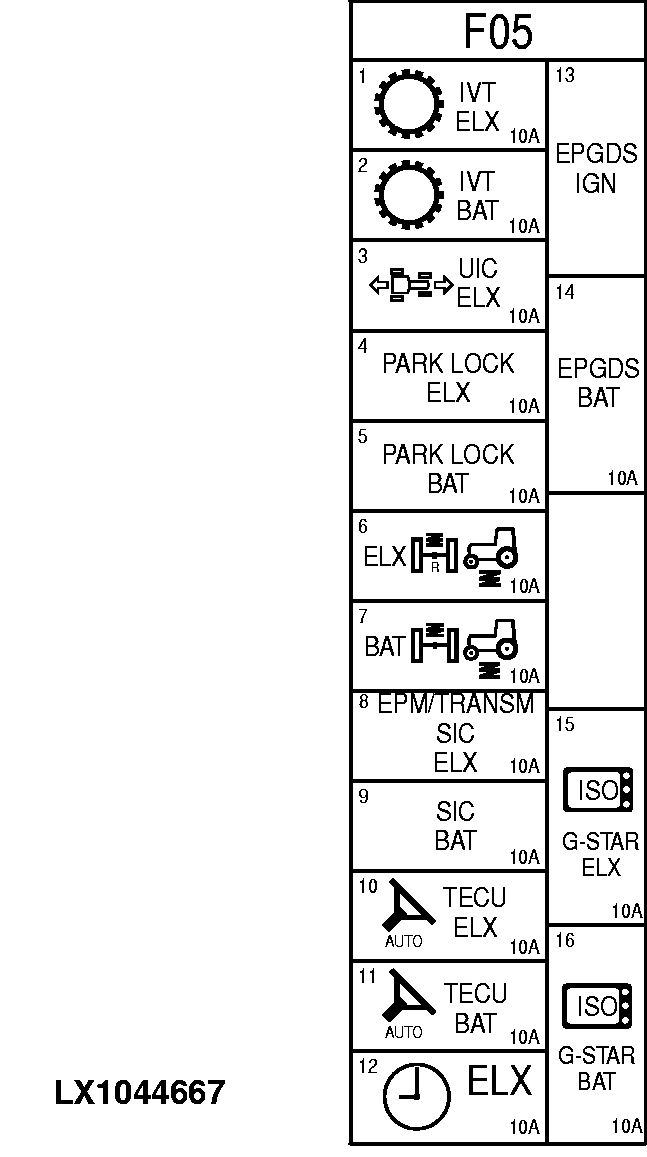

Fuses F05 (AutoPowr/IVT)
LX1044667-UN-23NOV07
|
Number |
Capacity (amps) |
Consumer |
|---|---|---|
|
F05/01 |
10 amps |
TCU control unit |
|
F05/02 |
10 amps |
TCU control unit |
|
F05/03 |
10 amps |
UIC control unit |
|
F05/04 |
10 amps |
PLC control unit |
|
F05/05 |
10 amps |
PLC control unit |
|
F05/06 |
10 amps |
TSC control unit |
|
F05/07 |
10 amps |
TSC control unit |
|
F05/08 |
10 amps |
SIC control unit, PC5 control unit, CAN-BUS (E-SCV/E-ICV) |
|
F05/09 |
10 amps |
SIC control unit |
|
F05/10 |
10 amps |
TEC control unit, SSU control unit |
|
F05/11 |
10 amps |
TEC control unit, SSU control unit |
|
F05/12 |
10 amps |
Timer |
|
F05/13 |
- |
Not used |
|
F05/14 |
- |
Not used |
|
F05/15 |
10 amps |
GreenStar |
|
F05/16 |
10 amps |
GreenStar |
|
OU12401,000192F-19-20071210 |
