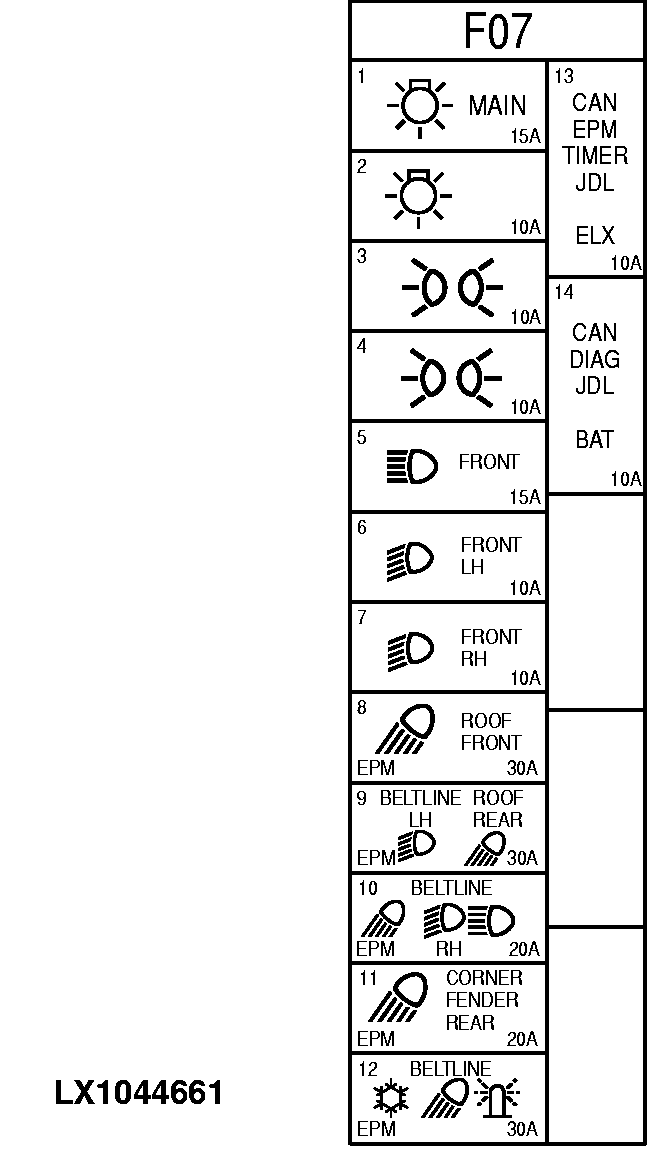

Fuses F07 (AutoPowr/IVT)
LX1044661-UN-26NOV07
|
Number |
Capacity (amps) |
Consumer |
|---|---|---|
|
F07/01 |
15 amps |
Light switch |
|
F07/02 |
10 amps |
Lights |
|
F07/03 |
10 amps |
Left-hand tail light, right-hand clearance light (ECE), license plate light (ECE) |
|
F07/04 |
10 amps |
Right-hand tail light, left-hand clearance light (ECE) |
|
F07/05 |
15 amps |
High-beam headlights |
|
F07/06 |
10 amps |
Low-beam headlight (left) |
|
F07/07 |
10 amps |
Low-beam headlight (right) |
|
F07/08 |
20 amps |
Worklights on front of roof |
|
F07/09 |
30 amps |
Worklights on rear of roof, xenon (HID) worklights on rear of roof, lights on cab frame (left-hand low-beam) |
|
F07/10 |
20 amps |
Lights on cab frame (high beam), lights on cab frame (right-hand low-beam), worklights on cab frame |
|
F07/11 |
20 amps |
Front corner worklights, worklights on rear fender |
|
F07/12 |
30 amps |
Beacon light, air-conditioning system, worklights on cab frame, xenon (HID) worklights on cab frame |
|
F07/13 |
10 amps |
JDL control unit, CAN BUS (vehicle) |
|
F07/14 |
10 amps |
JDL control unit, service socket |
|
F07/15 |
- |
Not used |
|
F07/16 |
- |
Not used |
|
OU12401,0001931-19-20071210 |
