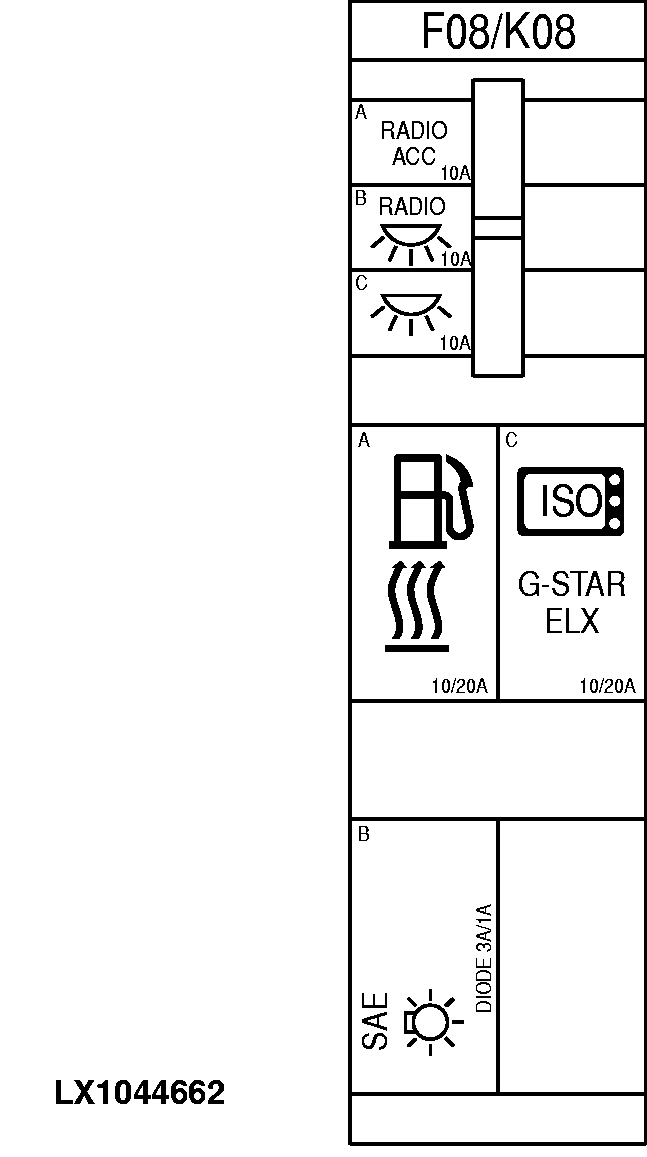

Fuses F08 (AutoPowr/IVT)
LX1044662-UN-23NOV07
|
Number |
Capacity (amps) |
Consumer |
|---|---|---|
|
F08/A |
10 amps |
Radio |
|
F08/B |
10 amps |
Console light, radio light |
|
F08/C |
10 amps |
Dome light, access-step light |
|
F08/D |
- |
Not used |
|
F08/E |
- |
Not used |
|
F08//F |
- |
Not used |
|
OU12401,0001932-19-20071210 |
