Reduce Fuel Consumption


Service correctly

LX1031683
LX1031683-UN-27MAR03

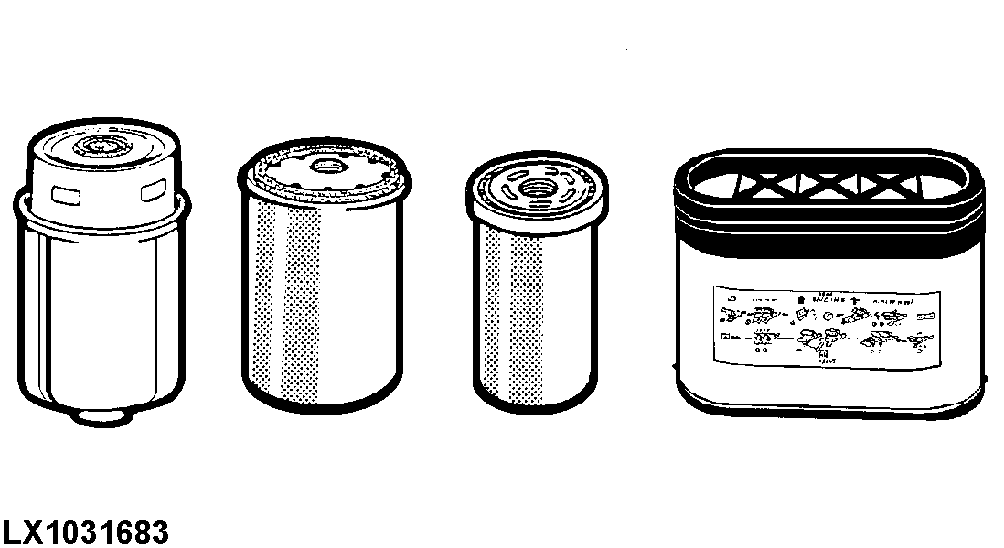

Replace air cleaner element and fuel, engine oil and transmission/hydraulic filter elements at specified service intervals (see “Service” section).

Use only John Deere filters!

L103642
L103642-UN-15AUG94

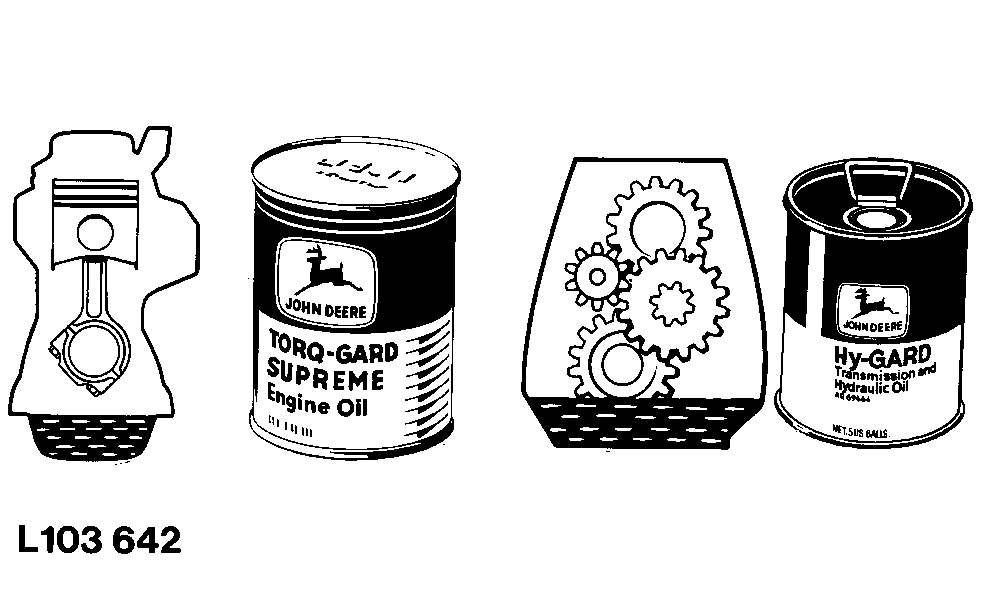

Use recommended oils and lubricants only (see “Fuel, Lubricants, Hydraulic Oil and Coolant” section).

LX1029227
LX1029227-UN-07MAY03

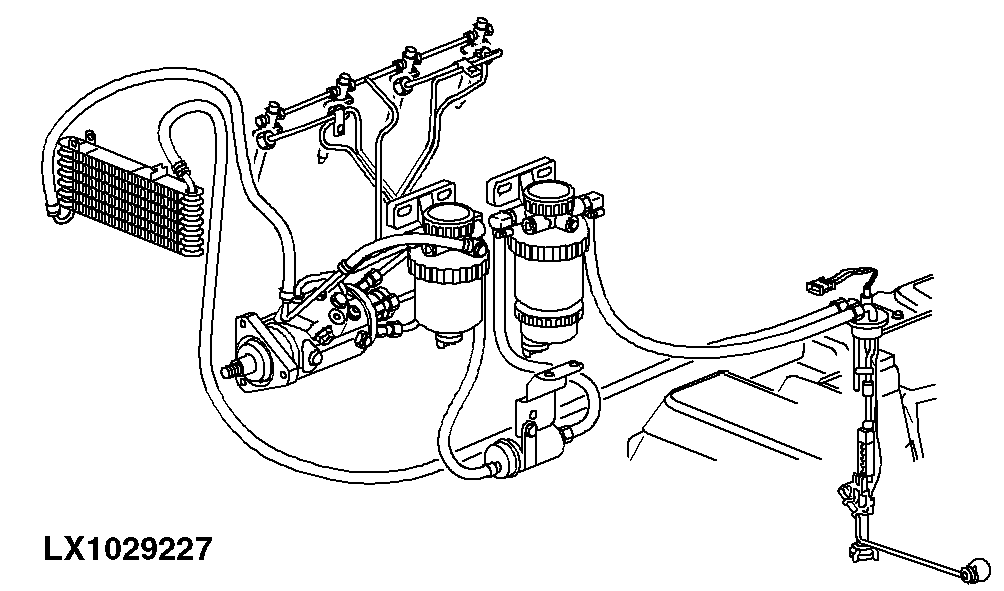

Have the fuel system checked regularly by your John Deere dealer.

LX1026059
LX1026059-UN-18MAY01

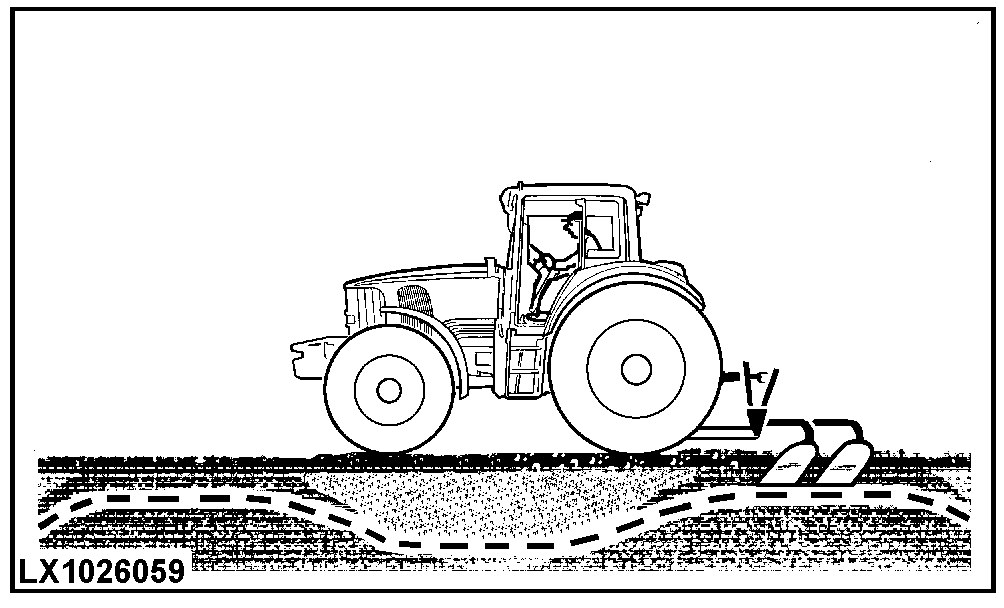

Have draft link control functions of the hitch checked regularly by your John Deere dealer.


Drive with correct tire pressures

L103645
L103645-UN-15AUG94

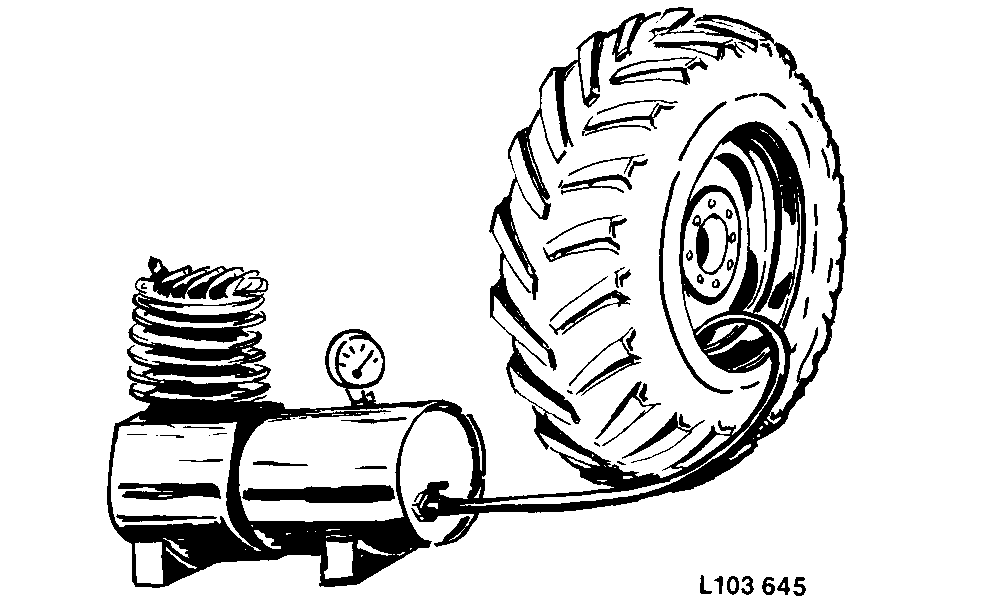

Adapt tire pressures to type of work and ground conditions (consult your John Deere dealer or local tire agent).


Choose correct ballast

LX009185
LX009185-UN-01SEP94

LX009186
LX009186-UN-01SEP94

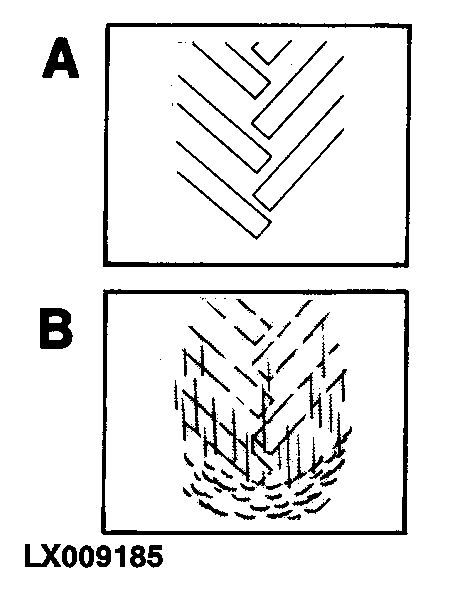

A - Too much ballast

B - Too little ballast

C - Correct ballast

Choose ballast to obtain 10 to 15% wheel slip. Use no more ballast than necessary, reduce ballast for light work.


Select correct gear

LX1036264
LX1036264-UN-31MAY06

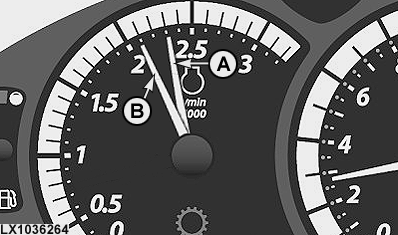

Always drive in the highest possible gear with reduced engine speed.

Choose a gear so that engine speed (A) with engine under no load drops 150 to 250 rpm when the tractor is operating with the engine under load (B).

NOTE: For light work, reduce engine speed below 2000 rpm. Select a gear so that engine speed drops 200 to 300 rpm when operating.

OU12401,0001943-19-20071211
