Check the Neutral Start Circuit


Tractors with PowrQuad Plus or AutoQuad Plus transmissions

LX1038393
LX1038393-UN-08JUN06

LX1044942
LX1044942-UN-21DEC07

A - Range-shift lever

B - Reverser lever

  1. Move range-shift lever (A) to neutral.

  2. Move the reverser lever (B) to "forward" or "reverse".

  3. Start the engine and wait 6-7 seconds. The “N” display must light up.

  4. Depress the clutch and engage any range. Slowly release the clutch pedal. The tractor must NOT start to move. If it does, see your John Deere dealer immediately.


Tractors with IVT

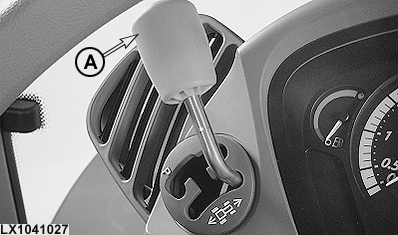

LX1041027
LX1041027-UN-08JUN06

A - Reverser lever

  1. Move reverser lever (A) to "forward" or "reverse".

  2. Turn key in main switch as far as it will go to the right. The starting motor must NOT turn over. If it does, see your John Deere dealer immediately.

  3. Repeat the test for the other direction of travel.

OU12401,000195E-19-20071216
