HMS, Programming with Moving Tractor (Learn Mode)

LX1044404-UN-29NOV07

HMS main page

LX1044948-UN-19DEC07

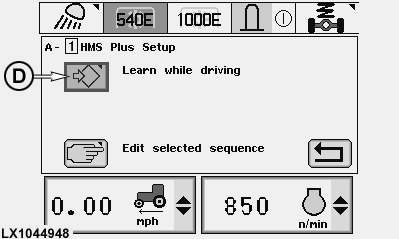

HMS select page (edit/learn mode)

LX1044415-UN-29NOV07

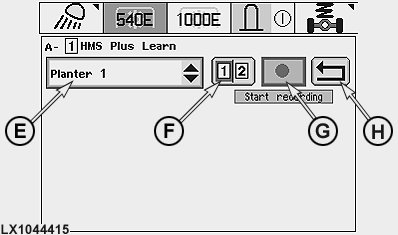

HMS learn page (recording not active)

LX1044416-UN-29NOV07

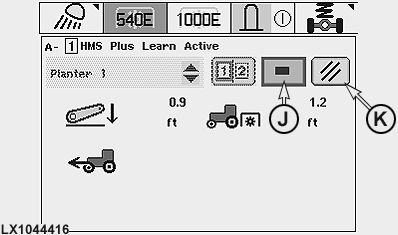

HMS learn page (recording active)

A - HMS on/off

B - Memory (A-E)

C - “Next page” symbol

D - Learning mode

E - Implement application

F - Program select cell

G - Start of recording

H - “Back to HMS main page” symbol

J - End of recording

K - Abortion of recording

On the screen, switch on HMS by actuating cell (A) (the HMS indicator light lights up on the dashboard). In cell (B), select the desired implement memory (A-E). A suitable implement name can be selected later via cell (E). The HMS select page (edit/learn mode) is displayed after pressing symbol (C). On this page the learn mode can be accessed via symbol (D). From list (E), choose the desired implement and then the desired program (1 or 2) using the program switch or cell (F). To start the recording, select cell (G). If there is a program already saved under this name, it will be lost. With tractor moving in forward direction (travel speed at least 0.5 km/h; 0.31 mph), perform the desired functions. To end the recording, select cell (J). The sequence of functions is now stored as a program. For details regarding the programming process, see next page.

“Learned” programs can be altered in the edit mode (with tractor stationary).

NOTE: If no tractor function is performed within 60 seconds after recording has started, the learn mode is aborted.

Learn mode is also aborted if cell (K) is selected.

A program can be deleted completely by choosing cell (G) and immediately afterwards cell (J).

The following applies to the rear PTO function:
PTO is switched on once the three-point hitch has dropped below the learned lift height AND the learned distance has been travelled. The PTO ALWAYS switches off as soon as the learned lift height is exceeded.
