Center Link Positions

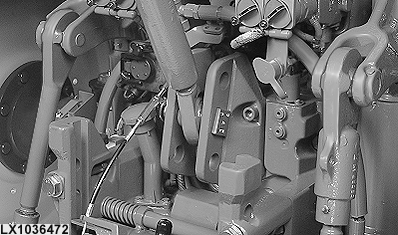

LX1036472-UN-24APR06

The center link can be attached to the tractor in any one of three different positions.

The lowest position provides maximum tilt angle but less lifting force and should be used when working with a plow.

The highest position provides greater lifting force and minimum tilt angle, and can be used when working with machines such as direct drills.

IMPORTANT: The lowest position must NOT be used with the hydraulic center link.
