Intelligent Power Management (Power Boost) — Optional Equipment

LX1037624-UN-06NOV06

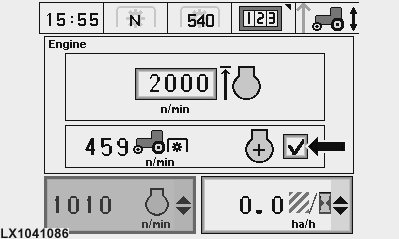

LX1041086-UN-20NOV06

A - Engine button

NOTE: Power boost is activated automatically when starting the engine.

To de-activate or re-activate power boost, press engine button (A) and make a choice on the screen.

If power boost is activated at the CommandCenter, then the following applies:

a) Transport work
Engine power is increased automatically when ground speed exceeds 15 km/h (9.3 mph). This power boost persists until the ground speed drops below 10 km/h (6.2 mph).

b) PTO operation
When using PTO-driven implements, engine power is increased gradually when ground speed exceeds 1 km/h (0.6 mph), if the tractor electronic system detects a correspondingly high PTO power requirement. Full power becomes available from a speed of 2.5 km/h (1.5 mph).

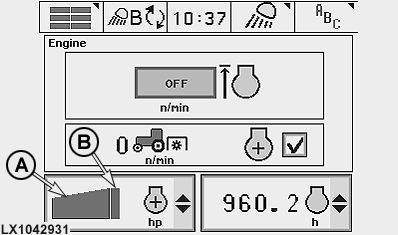

Engine power display

LX1042931-UN-02MAY07

A - Engine power below rated power

B - Engine power above rated power

Fields (A) and (B) display the current engine power (light green color).

• Field (A) represents the power range up to rated engine power.
• Field (B) represents the John Deere power bulge (above rated power).
• The power boost achieved by the “Intelligent Power Management” system for PTO operation and transport work is displayed in field (B) (dark green color).
