Load/Depth Adjustment

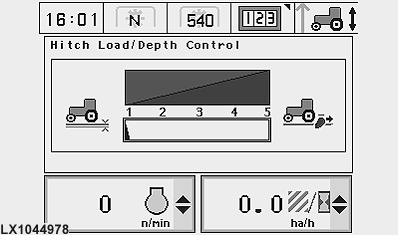

LX1038305-UN-06NOV06

LX1044978-UN-17MAR08

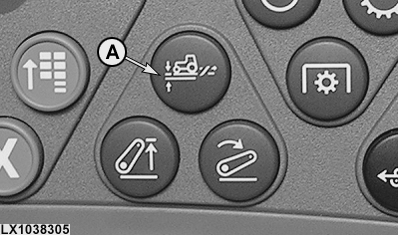

Button (A) is used to select this screen. There, you can set the hitch between load control and depth control. The positions have the following meanings:

• 1 = Depth control
• over 1 but less than 5 = Mixed control
• 5 = Load control

CAUTION: Before connecting implements to the three-point hitch, position 1 (depth control) must be selected to prevent unintentional raising or lowering of the hitch.

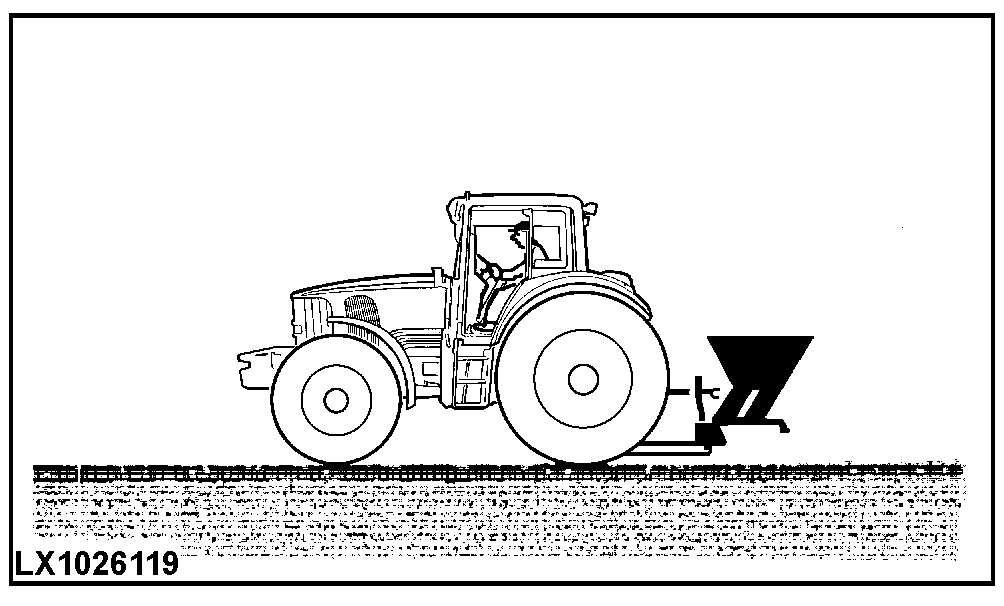

1 Depth Control

LX1026119-UN-10MAY01

With load/depth control in this position, the implement is held at the selected position.

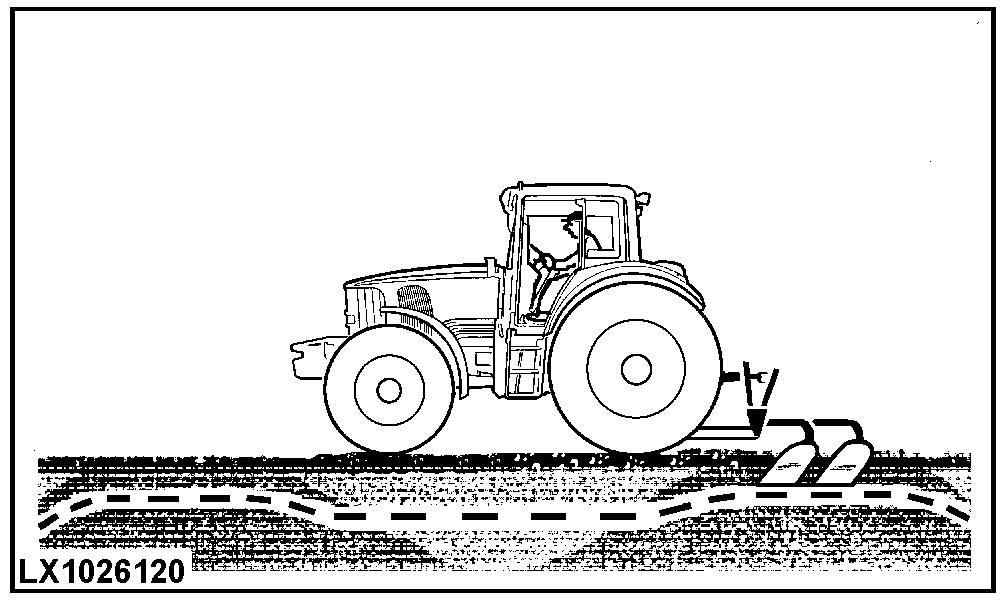

Over 1 but less than 5 Mixed Control

LX1026120-UN-10MAY01

The intermediate positions of the load/depth control allow the effects of depth control and/or load control to be infinitely varied as the ground conditions require.

5 Load Control

LX1026059-UN-18MAY01

With load/depth control in this position, the implement is raised as resistance (soil density) increases and lowered as resistance decreases, thus maintaining the preselected load.
