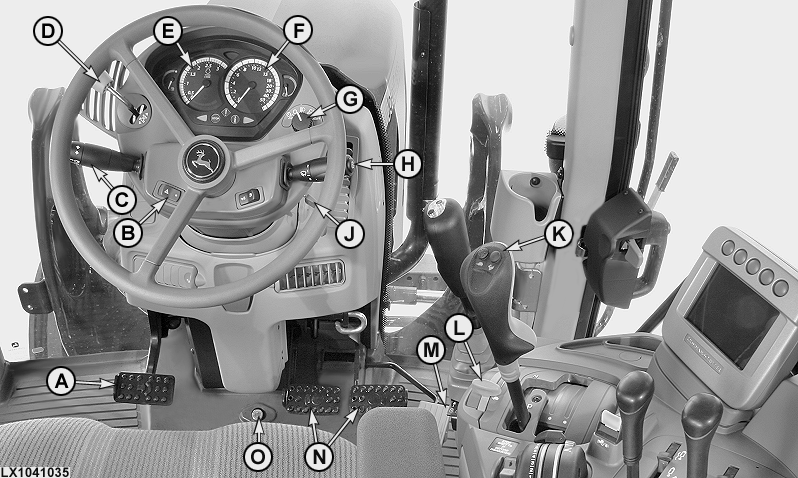

Vehicle Controls (Tractors with PowrQuad Plus and AutoQuad Plus Transmission)

LX1041035-UN-14JUN06

A - Clutch pedal

B - Hazard warning light switch

C - Multi-function lever for turn signal lights, high beam and horn

D - Reverser lever

E - Tachometer (engine rpm)

F - Speedometer, km/h or mph

G - Light switch

H - Windshield wiper switch

J - Main (key) switch

K - Range shift lever with gearshift switches

L - Hand throttle

M - Accelerator pedal

N - Left and right brake pedals

O - Differential lock switch
