Light Switches

LX1041036-UN-14JUN06

LX1041415-UN-11OCT06

L102655-UN-15AUG94

A - Light switch

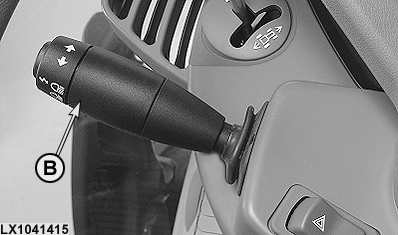

B - Multi-function lever for low / high beam

C - High beam indicator

CAUTION: Comply with local lighting regulations.

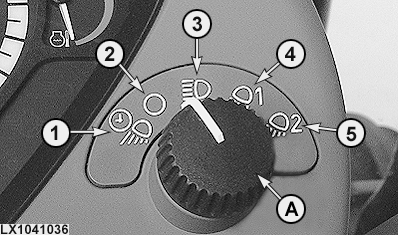

Positions of switch (A):

• 1 = Egress light on
• 2 = Light switch in off position
• 3 = Headlights, tail lights and warning lights on
• 4 = Headlights on
• 5 = Headlights on and worklights can be switched on

Switch headlights to low beam or high beam position by means of lever (B).

• Pull lever toward steering wheel = Headlight flasher (flash-to-pass)
• Lever in center = Low beam
• Push lever away from steering wheel = High beam

Indicator light (C) will glow when headlight switch is in high beam position.

NOTE: If the egress light is activated at the CommandCenter (see Worklights in this Section), the headlights and any worklights that are activated come on for several seconds if switch (A) is turned briefly to position 1 once or several times.

Frequency of switch actuation	Egress light on time
Once	90 seconds
Twice	120 seconds
Three times	150 seconds
Four times	180 seconds
