Worklights

LX1037587-UN-06NOV06

LX1041076-UN-11OCT06

LX1037611-UN-31MAY06

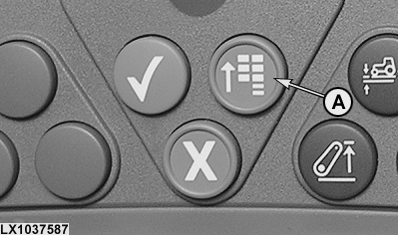

A - Main menu key

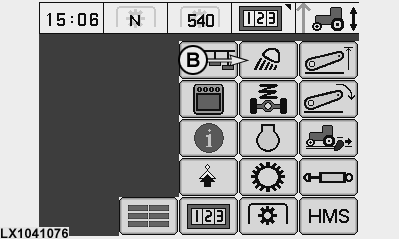

B - Lights screen

CAUTION: Switch off worklights when driving on public roads. Worklights might blind or confuse other drivers.

Press the main menu key (A) and select the Lights screen (B).

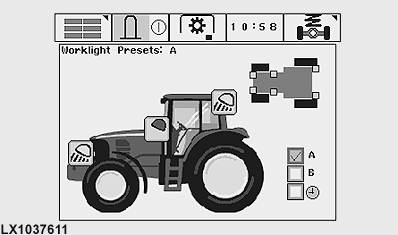

The content of the following screen varies depending on how the tractor is equipped.

Two combinations of worklights may be specified (option A and option B). The option marked with the clock symbol determines whether the egress light is activated.

The selected worklights come on when the light switch is set to position 5.
