PowrQuad Plus Transmission — Settings

Speed-matching when changing ranges

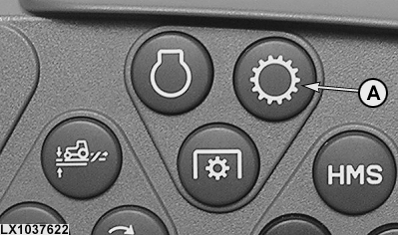

LX1037622-UN-06NOV06

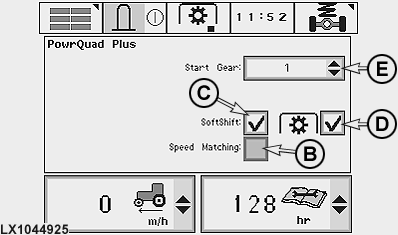

LX1044925-UN-11DEC07

A - Transmission button

B - Speed-matching

C - Engine-speed matching

D - PTO operation

E - Initial gear (at start-up)

If this option is activated, when changing ranges at travel speeds at or above approx. 7 km/h (4.4 mph), the transmission is automatically shifted into a gear that matches the travel speed. This automatic function can be overridden by holding down one of the gear-shift switches.

Press transmission button (A) and select speed-matching (B).

Engine-speed matching when shifting gears

If this option is activated, engine speed is altered temporarily by the electronics to achieve a smoother shift.

Press transmission button (A) and select engine-speed matching (C) and - if desired - PTO operation (D). Engine speed can then be matched in the following ways:

• Switched off all the time, if (C) is not activated
• Switched on, but off for PTO operation if only (C) is activated
• Switched on all the time, if (C) and (D) are activated

Initial gear (at start-up)

The figure in cell (E) determines which gear will be automatically selected at the transmission immediately after the engine is started.

Setting an upper limit for engine speed (Field Cruise)

LX1037624-UN-06NOV06

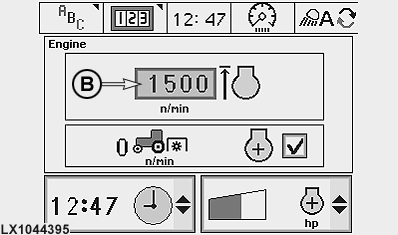

LX1044395-UN-06MAR08

A - Engine button

B - Upper limit for engine speed

This option allows you to set an upper limit for engine speed when performing certain work such as operating an hydraulic motor.

Run the engine, set the hand throttle to maximum speed, then press engine button (A) and set the desired engine speed in cell (B).

In the lowest setting, engine speed is limited to 1050 rpm. In the highest setting, the engine can run at maximum speed. Individual engine speed limits can be set between these two positions.
