AutoQuad Plus Transmission — Settings

Select Auto mode

LX1037622-UN-06NOV06

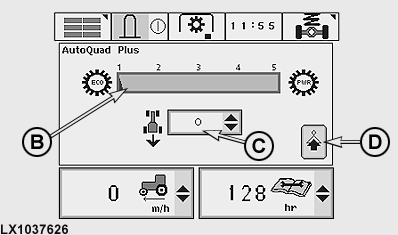

LX1037626-UN-31MAY06

A - Transmission button

B - Cell for setting Auto mode

C - Forward/reverse ratio

D - Next page

Press transmission button (A) and select Auto mode (B).

Select the forward/reverse ratio

The relationship between forward and reverse gears can be selected on the CommandCenter screen from a maximum of 3 gears higher in reverse to 3 gears lower (+3 to -3).

Press transmission button (A) and select the desired relationship in cell (C).

The relationship remains in effect when Auto mode is switched off, and is stored after ignition is switched off.

If smart is selected, the electronic system will learn the forward and reverse gear manually selected by the operator and will shift into the relevant gear when changing the direction of travel.

NOTE: When Auto mode is activated, a set maximum gear takes priority over the selected relationship.

Speed-matching when changing ranges

LX1037622-UN-06NOV06

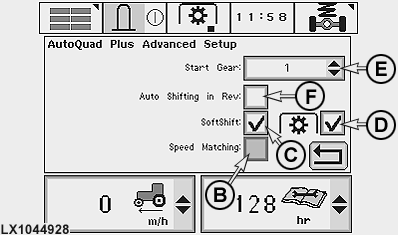

LX1044928-UN-11DEC07

A - Transmission button

B - Speed-matching

C - Engine-speed matching

D - PTO operation

E - Initial gear (at start-up)

F - Auto mode in reverse

If this option is activated, when changing ranges at travel speeds at or above approx. 7 km/h (4.4 mph), the transmission is automatically shifted into a gear that matches the travel speed. This automatic function can be overridden by holding down one of the gear-shift switches.

Press transmission button (A) and select speed-matching (B).

Engine-speed matching when shifting gears

If this option is activated, engine speed is altered temporarily by the electronics to achieve a smoother shift.

Press transmission button (A) and select engine-speed matching (C) and - if desired - PTO operation (D). Engine speed can then be matched in the following ways:

• Switched off all the time, if (C) is not activated
• Switched on, but off for PTO operation if only (C) is activated
• Switched on all the time, if (C) and (D) are activated

Initial gear (at start-up)

The figure in cell (E) determines which gear will be automatically selected at the transmission immediately after the engine is started.

Auto mode in reverse

In cell (F), you can select whether or not Auto mode is active in reverse as well.

Setting an upper limit for engine speed (Field Cruise)

LX1037624-UN-06NOV06

LX1044395-UN-06MAR08

A - Engine button

B - Upper limit for engine speed

This option allows you to set an upper limit for engine speed when performing certain work such as operating an hydraulic motor.

Run the engine, set the hand throttle to maximum speed, then press engine button (A) and set the desired engine speed in cell (B).

In the lowest setting, engine speed is limited to 1050 rpm. In the highest setting, the engine can run at maximum speed. Individual engine speed limits can be set between these two positions.
