Check the Swinging Drawbar for Wear

LX1041436
LX1041436-UN-20NOV06

CAUTION: Parts that have reached or exceeded their wear limit must be replaced with new parts.

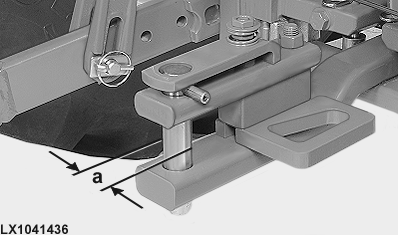

Pin diameter (a) must be at least 29.5 mm (1.16 in.).

LX1041437
LX1041437-UN-20NOV06

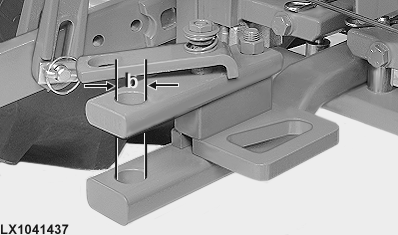

Bore diameter (b) at the top and bottom (measured in direction of travel) must not exceed 35.0 mm (1.38 in.).

OU12401,0001AD6-19-20081011
