Engage the Differential Lock

LX1036281-UN-17AUG05

CAUTION: Do not attempt to steer the tractor with the differential lock engaged.

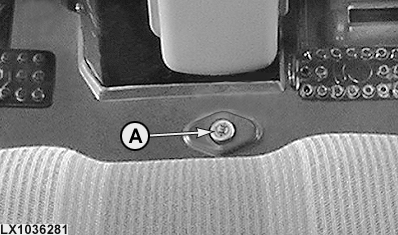

If wheel slip varies greatly between rear wheels, engage differential lock using switch (A). To disengage the differential lock, depress brake pedal or actuate switch (A) again.

If tractor speed exceeds 23.3 km/h (14.5 mph) with the differential lock engaged, the differential lock switches off automatically.

When tractor speed drops below 23.3 km/h (14.5 mph) again, the differential lock must be engaged manually by the driver.
