Electrical Sockets (If Equipped)

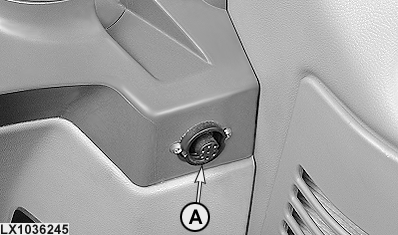

LX1036245-UN-03JUN05

Signal socket in lateral console

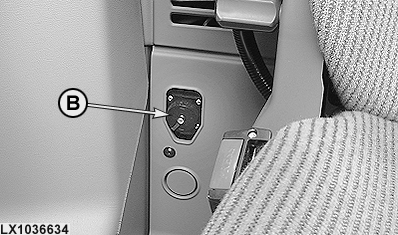

LX1036634-UN-24AUG05

3-terminal socket in rear cab wall

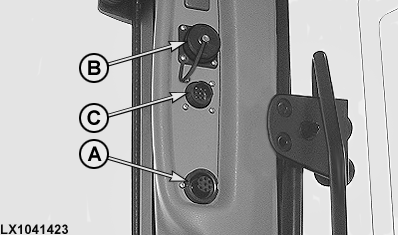

LX1041423-UN-06NOV06

Sockets in cab frame

A - Signal Socket

B - 3-Terminal Power Outlet Socket

C - ISOBUS Socket

Signal socket

Terminal	Wire color	Description
1	Red	Speed determined by radar
2	Brown	Wheel speed
3	Orange	Rear PTO speed
4	—	—
5	—	—
6	Blue	Power supply
7	Black	Ground

The 7-terminal signal socket (A) is protected by a 30-amp fuse.

ISOBUS socket in cab

An implement monitor meeting ISO Standard 11783 may be connected to socket (C).

3-terminal power outlet socket

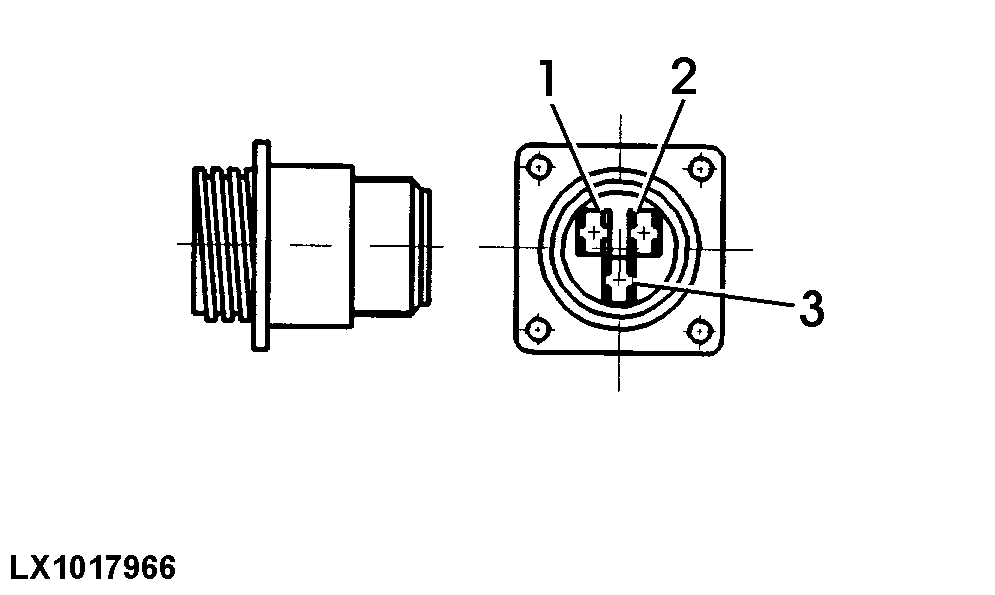

LX1017966-UN-12JAN98

Turn key in main (key) switch to the right to supply power to terminal 1. Terminal 2 is supplied with power even when the ignition is switched off.

IMPORTANT: Electrical equipment requiring high current inputs may be operated, and the use of multiple power outlets is permitted, but the supply circuit must never be overloaded. Remember, total load comprises the sum of all the current consumers connected to the on-board circuit at any one time. This also applies if the consumers are connected to the on-board circuit at different sockets.
