Multiple Power-Outlet Socket Strip (If Equipped)

LX1036247-UN-24APR06

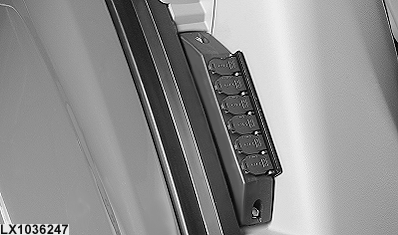

A strip of extra sockets may be installed on the front of the switch console. Terminal A on the socket strip is protected by a 30-amp fuse. Terminal C is protected by a 30-amp fuse, and terminal B is ground.

Turn key in main (key) switch to the right to supply power to terminal C. Terminal A is supplied with power even when the ignition is switched off.

IMPORTANT: Electrical equipment requiring high current inputs may be operated, and the use of multiple power outlets is permitted, but the supply circuit must never be overloaded. Remember, total load comprises the sum of all the current consumers connected to the on-board circuit at any one time. This also applies if the consumers are connected to the on-board circuit at different sockets.
