Emergency Exits

LX1049999
LX1049999-UN-09AUG11

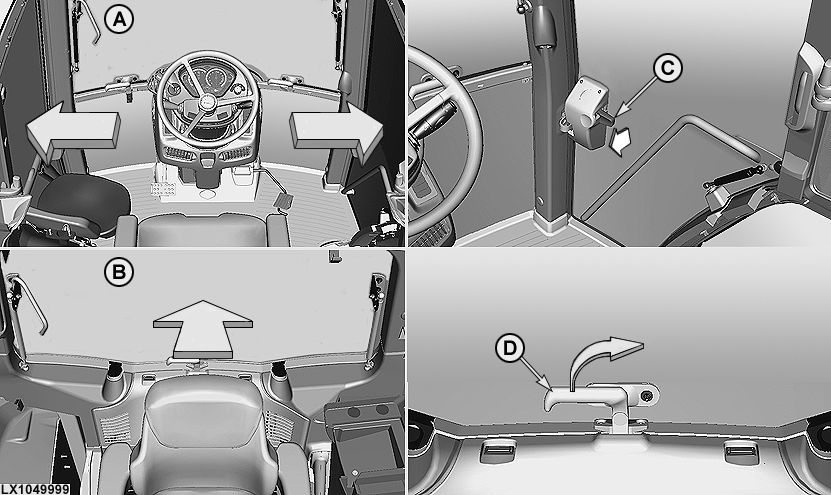

In an emergency, it is possible to exit the cab through the two doors (A). To do this, pull lever (C) to release the door and then push it open.

In an emergency it is also possible to exit the cab through the opening of the rear window (B). Turn lever (D) to the right to release the window and then push it open.

If not equipped with a right door, either break the glass by using an emergency hammer (if equipped) or open it by pulling out the cotter pin.

OU12401,0001CD5-19-20111018
