Rate of Cylinder Operation

LX1037211-UN-21OCT05

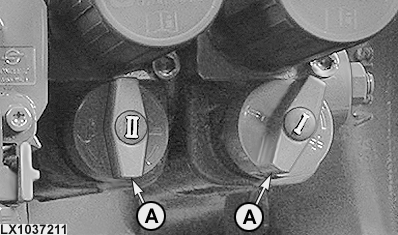

Flow control valves (A) can be used to regulate the rate at which remote cylinders extend and retract (raise and lower). When lowering, make sure that the SCV control lever is NOT moved to float position.

IMPORTANT: Full extension and retraction of a remote cylinder must require more than 1.5 seconds. Faster speeds may cause damage.
