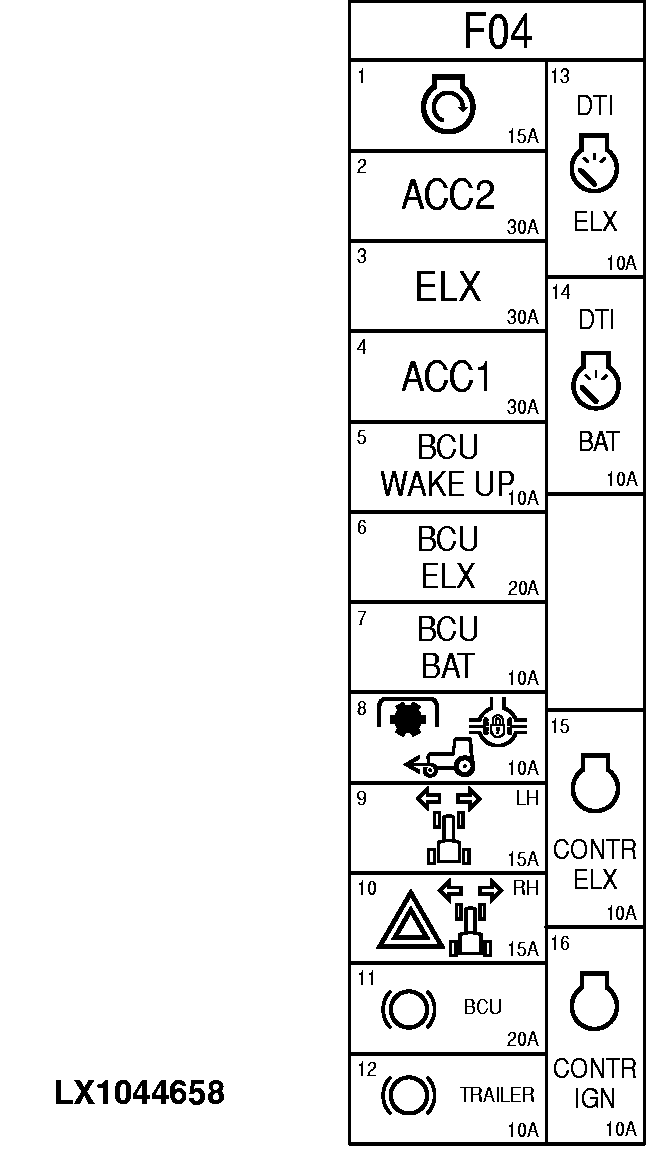

Fuses F04 (AutoPowr/IVT)

LX1044658-UN-23NOV07

Number	Rating (amps)	Consumer
F04/01	15 A	Main (key) switch
F04/02	30 A	Power supply for accessories
F04/03	30 A	Power supply for electronics
F04/04	30 A	Power supply for accessories
F04/05	10 A	PC0 control unit, PC6 control unit, CAN-BUS (vehicle), BCU activation
F04/06	20 A	BCU control unit
F04/07	10 A	BCU control unit
F04/08	10 A	BCU control unit (rear PTO, front PTO, front-wheel drive, differential lock, HMS Plus, park brake monitor, radar)
F04/09	15 A	Left turn signal
F04/10	15 A	Right turn signal, hazard warning lights
F04/11	20 A	Brake switch
F04/12	10 A	Brake lights
F04/13	10 A	BIF control unit, BIF control unit (wipers), DTI control unit
F04/14	10 A	BIF control unit, DTI control unit
F04/15	10 A	ECU control unit
F04/16	10 A	ECU control unit
