Customization

LX1037587-UN-06NOV06

LX1041450-UN-21NOV06

LX1041447-UN-21NOV06

A - Main menu key

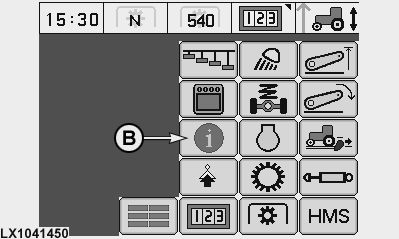

B - Information display cell

In various addresses the operator can make adjustments to adapt the operation of tractor components to his personal requirements.

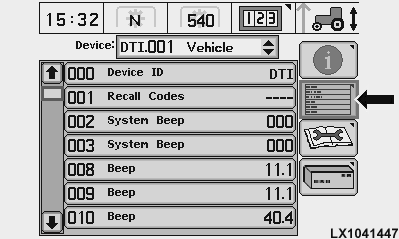

This is done as follows: Press main menu key (A), select information display cell (B) and then the Diagnostic Address screen. Select desired control unit (e.g. ATC, BCU or EPC), select desired address (e.g. 033) and key in the corresponding value (see table below).

Address	Meaning	Value
ATC033	Temperature indicator	0 alternating between desired and ambient temperature 255 desired temperature only
BCU024	Audible indicator for turn signals	0 audible indicator off 1 audible indicator on
BCU165	Rate of lift adjustment*	0 min. rate of lift 255 max. rate of lift
EPC167	Hand clutch	0 de-activated 1 activated
* value should be adjusted to 75-85 for hydraulic motor operation
