Indicator Lights and Displays

Indicator lights

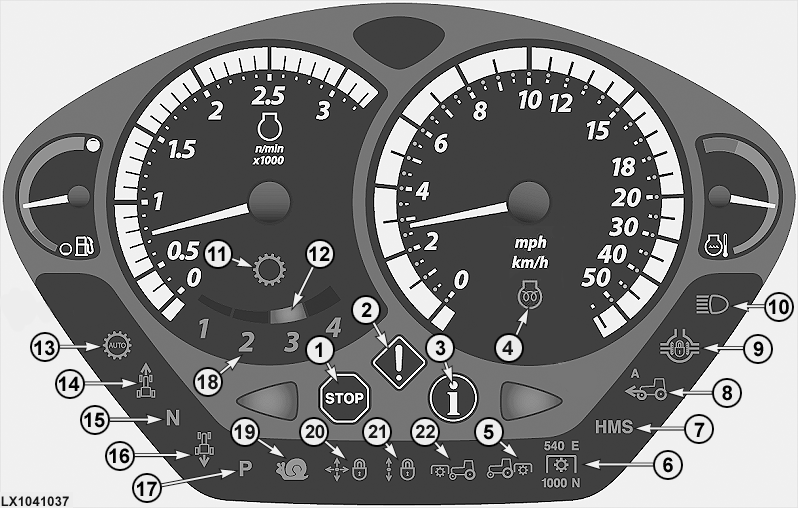

LX1041037-UN-08JAN10

1-The red STOP light flashes when a serious malfunction occurs. Switch off the engine IMMEDIATELY and determine the cause (review the error message in the CommandCenter).

2-The yellow CAUTION light flashes when a malfunction occurs (review the error message in the CommandCenter). This light also flashes if the park brake is applied with the engine running and the reverser lever set to any position other than neutral.

3-The blue INFO light comes on when there is a fault in an electrical component associated with the hydraulic system or transmission. See your John Deere dealer.

4-This light comes on when the main (key) switch is turned one position to the right. Wait till the light goes out before starting the engine.

5-This light comes on when the rear PTO is engaged.

6-These lights indicate which rear PTO speed is selected.

7-This light comes on when HMS Plus is selected.

8-This light comes on when front-wheel drive is engaged. When front-wheel drive is in its automatic mode, the letter A also lights up.

9-This light comes on when the differential lock is engaged.

10-The high beam indicator light comes on when the headlights are switched on at high beam.

11-With PowrQuad Plus or AutoQuad Plus transmission, this light comes on together with a number that indicates which gear is selected.

12-These illuminated sectors indicate the setting for highest possible gear (with AutoQuad Plus transmission).

13-This light comes on whenever the automatic mode of an AutoQuad Plus or AutoPowr / IVT transmission is activated.

14-This light comes on when the reverser lever is in forward position.

15-This light comes on when the reverser lever is in neutral position.

16-This light comes on when the reverser lever is in reverse position.

17-This light comes on when the transmission is in Park position.

18-With PowrQuad Plus or AutoQuad Plus transmission, figures 1-4 indicate which gear is selected.

19-This light comes on when the AutoPowr / IVT transmission is in creeper mode.

20-This light comes on whenever the transport lock of the electrical multi-function lever is activated.

21-This light comes on whenever the transport lock of the E-SCV/E-ICV is activated.

22-This light comes on when front PTO is engaged.

Light test: As the engine is started, all the lights should come on for approx. 1 second. If not, a defective bulb or blown fuse may be the cause. Check and replace parts as necessary.

The indicator lights should go out as soon as the engine is running.

NOTE: Travel speed can be displayed in km/h or MPH. This setting can be made at the CommandCenter. In this section, see the Units of measurement screen in CommandCenter settings.

Fuel gauge

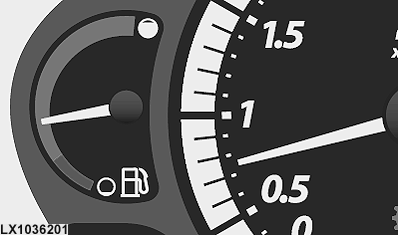

LX1036201-UN-31MAY06

The fuel gauge shows the amount of fuel in the tank, from full to empty (end of red). When the indicator needle enters the red, there are still approx. 35 liters (9.2 U.S. gal.) remaining.

Coolant temperature gauge

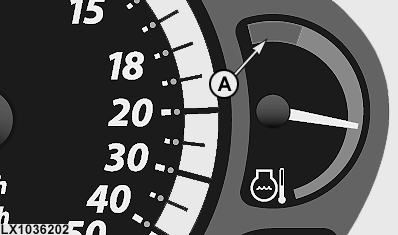

LX1036202-UN-31MAY06

If the coolant gauge needle moves into the red (A), the engine is overheating. Immediately reduce load or shift to a lower gear. If the needle remains in the red, shut off engine and determine cause of overheating (coolant level low, dirty radiator or dirty radiator screen).
