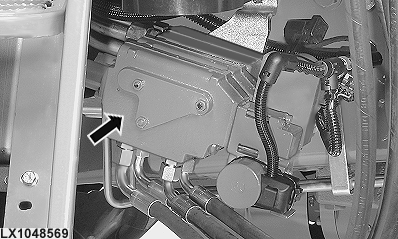

Positions of E-ICVs

LX1048569-UN-08DEC09

The E-ICVs are located under the right access step.

The inner E-ICV (on frame) is actuated when the multi-function lever is moved forward/back. The second E-ICV is actuated when the lever is moved left/right. The third E-ICV (if equipped) is actuated when the third function is triggered.
