Couplers

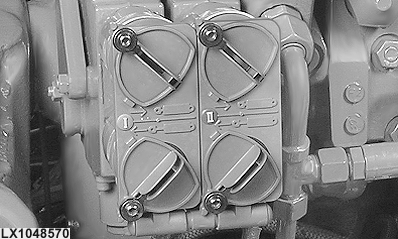

LX1048570-UN-10DEC09

CAUTION: The hydraulic system has a maximum system pressure of 20000 kPa (200 bar; 2900 psi). For your own protection and to assure proper functioning of the system, use only genuine John Deere parts.

Couplers allow hydraulic hoses to be coupled or uncoupled without loss of oil, even if the tractor engine is running.

If a malfunction or accident causes the hose to break loose from the coupler, the oil flow through the coupler is stopped immediately.

To connect the hose union, press it firmly into the coupler.

NOTE: When connecting, comply with the symbols on the couplers.

To disconnect the hose, give it a firm pull.
