After the First 4 and 8 Hours of Operation

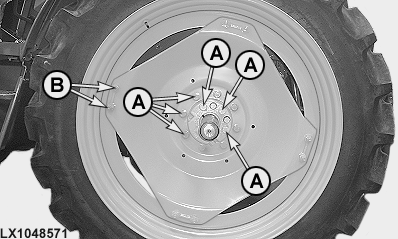

Tighten rear wheel retaining bolts/nuts

LX1029238-UN-05MAY03

LX001297-UN-12AUG94

LX1048571-UN-08DEC09

A - 500 Nm (370 lb-ft)

B - 250 Nm (185 lb-ft)

C - 230 Nm (170 lb-ft)

Tighten front wheel retaining bolts/nuts

LX000558-UN-12AUG94

LX1029249-UN-24APR03

A - 250 Nm (185 lb-ft)

B - 300 Nm (220 lb-ft)

C - 250 Nm (185 lb-ft)

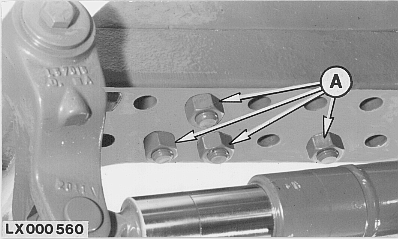

Adjustable front axle

LX000560-UN-09AUG94

Tighten mounting screws (A) to 400 Nm (300 lb-ft).
