Tread Adjustment, Adjustable Rims

LX1035458
LX1035458-UN-15APR05

Wheel tread can be adjusted by replacing or reversing the wheel rims. Additional tread widths can be achieved by using spacers.

In addition the complete wheel can be installed on the other side of the tractor. In doing so, maintain the direction of tire rotation.

NOTE: Wheel tread on tractors equipped with a front loader must not exceed 1.80 m (71 in.).

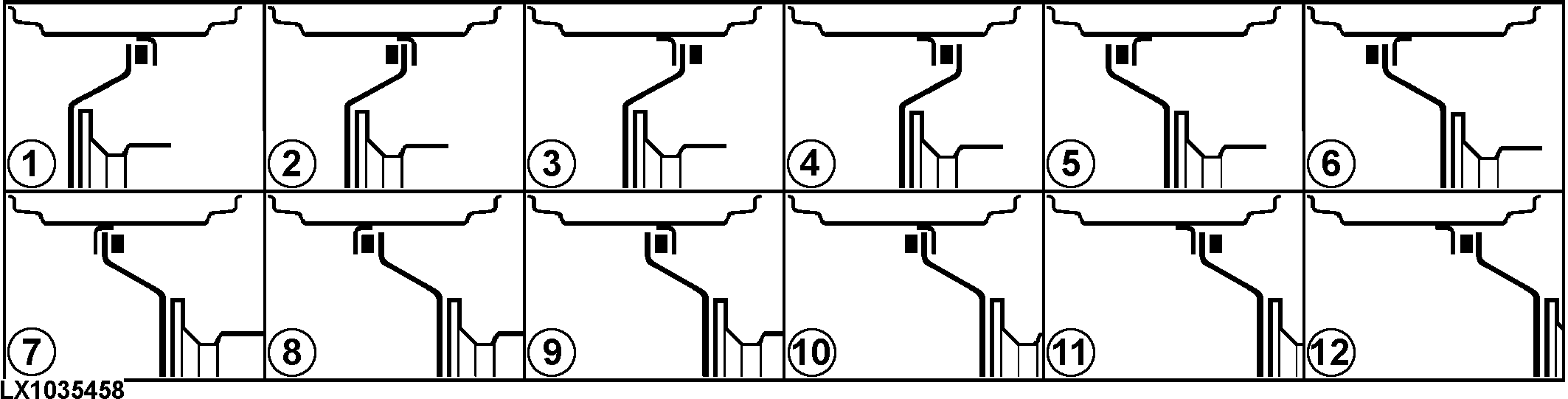

Positions of rims, wheel disks and spacers


1

2

3

4

5

6

7

8

9

10

11

12

mm

1524

1552

1584

1616

1720

1748

1782

1812

1924

1952

1984

2016

(in.)

(60)

(61.1)

(62.4)

(63.6)

(67.7)

(68.8)

(70.2)

(71.3)

(75.7)

(76.9)

(78.1)

(79.4)

Tires:



320/85R24

x

x

x

x

x

x

x

x

x

x

x

x

340/85R24

x

x

x

x

x

x

x

x

x

x

x

x

380/70R24

x*

x*

x*

x

x

x

x

x

x

x

x

x

380/75R24

x*

x*

x*

x

x

x

x

x

x

x

x

x

380/85R24

x*

x*

x*

x

x

x

x

x

x

x

x

x

420/70R24

—

—

—

x

x

x

x

x

x

x

x

x

420/85R24

—

—

—

—

x

x

x

x

x

x

x

x

480/70R24

—

—

—

—

x

x

x

x

x

x

x

x

480/75R24

—

—

—

—

x

x

x

x

x

x

x

x

540/65R24

—

—

—

—

x*

x*

x*

x

x

x

x

x

320/85R28

x

x

x

x

x

x

x

x

x

x

x

x

340/85R28

—

—

—

x

x

x

x

x

x

x

x

x

12.4R24

x

x

x

x

x

x

x

x

x

x

x

x

13.6R24

x

x

x

x

x

x

x

x

x

x

x

x

14.9R24

x*

x*

x*

x

x

x

x

x

x

x

x

x

16.9R24

—

—

—

—

x

x

x

x

x

x

x

x

12.4R28

x

x

x

x

x

x

x

x

x

x

x

x

13.6R28

—

—

—

x

x

x

x

x

x

x

x

x

13.6-38

—

—

—

x

x

x

x

x

x

x

x

x

* With pivoting fenders only
