Changing the Oil at the Front PTO (If Equipped)

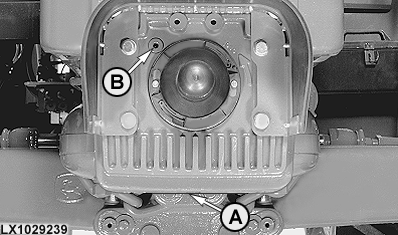

LX1029239-UN-15APR03

Unscrew plugs (A) and (B) and drain the oil.

Screw in plug (A) again. Add 3.5 liters (0.9 U.S.gal.) of transmission/hydraulic oil to the PTO housing. Screw in plug (B) again.
