Adjusting Toe-In on Front-Wheel Drive Axle

1.

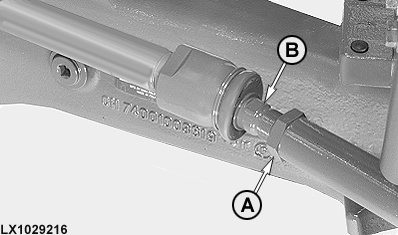

   LX1029216-UN-02APR03

   A - Retaining Nut

   B - Rod

   Actuate the steering so that the front wheels are set for driving straight ahead.

---




2. Shut off the engine and remove the ignition key.

3. Shift transmission to park.

4. Loosen retaining nut (A).

5. NOTE: Toe-in or toe-out must not exceed ± 1.5 mm (0.06 in.).

   Turn rod (B) to obtain desired toe-in or toe-out. See also Check Toe-In in this section.

   Item	Measurement	Specification
   Toe-in or toe-out	Clearance	± 1.5 mm ± 0.06 in.

6. Tighten retaining nut (A) to specified torque.

   Item	Measurement	Specification
   Retaining nut on 6530L	Torque	220 to 240 Nm 162 to 177 lb.-ft.
   Retaining nut on 6230 to 6430	Torque	328 to 363 Nm 242 to 267 lb.-ft.
