Adjust Toe-In (Tractors without Front-Wheel Drive Axle)

LX000774
LX000774-UN-05APR00

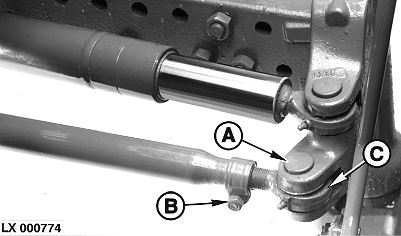

Take out collar pin (A) and remove tie rod. Slacken off clamping screw (B) and adjust the position of tie-rod end (C). Screwing the tie-rod end in reduces toe-in; screwing the tie-rod end out increases toe-in.

After adjustment is completed, tighten clamping screw (B) to between 45 and 55 Nm (33 and 40 lb.-ft.). Secure the tie rod to the knuckle and spindle assembly.

IMPORTANT: The grease fitting must be in the position shown in the picture.

On tractors without front-wheel drive axle, toe-in must be between 3 and 9 mm (0.12 and 0.35 in.).
