Front Loader Installation - Front Loader Brackets

CC1028344-UN-10AUG06

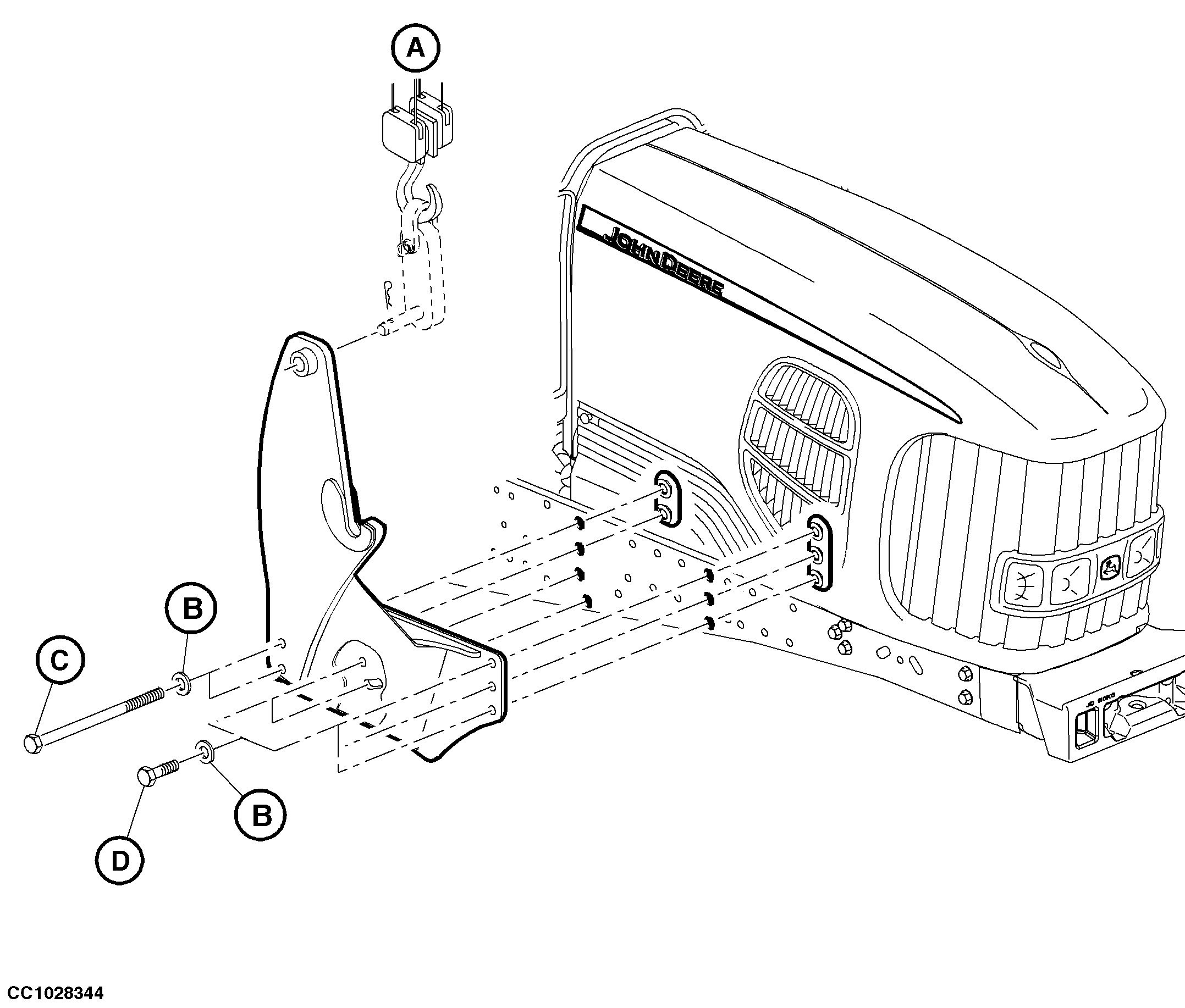

Hardware for John Deere front loader brackets
Item	Description	Width across flats	Torque	Standard	Thread	Length	Identification / Grade
A	Weight of front loader bracket, 100 kg (220 lb)	-	-	-	-	-	-
B	Washers (7 used)	-	-	-	-	21.4 x 22 x 5 mm	-
C	Cap screws (2 used)	30 mm	550 N•m (406 lb.-ft.)	ISO4014	M20 x 2.5	320 mm (12.6 in.)	10.9
D	Cap screws (5 used)	30 mm	550 N•m (406 lb.-ft.)	ISO4017	M20 x 2.5	45 mm (1.77 in.)	10.9
	Nuts (7 used)	30 mm	-	ISO4161	M20 x 2.5	-	10

Using a suitable hoist, position the front loader brackets on the main frame of the tractor and tighten the screws to the specified torque. Check the torque regularly; see Section 85, Lubrication and Periodic Service.

A front loader checked and approved by John Deere is available for purchase. When installing John Deere front-loader brackets, use appropriate hardware only, as shown in the illustration above. Comply also with Operator's Manual and Installation Instructions of the front loader.
