Adjusting the Pivoting Fenders

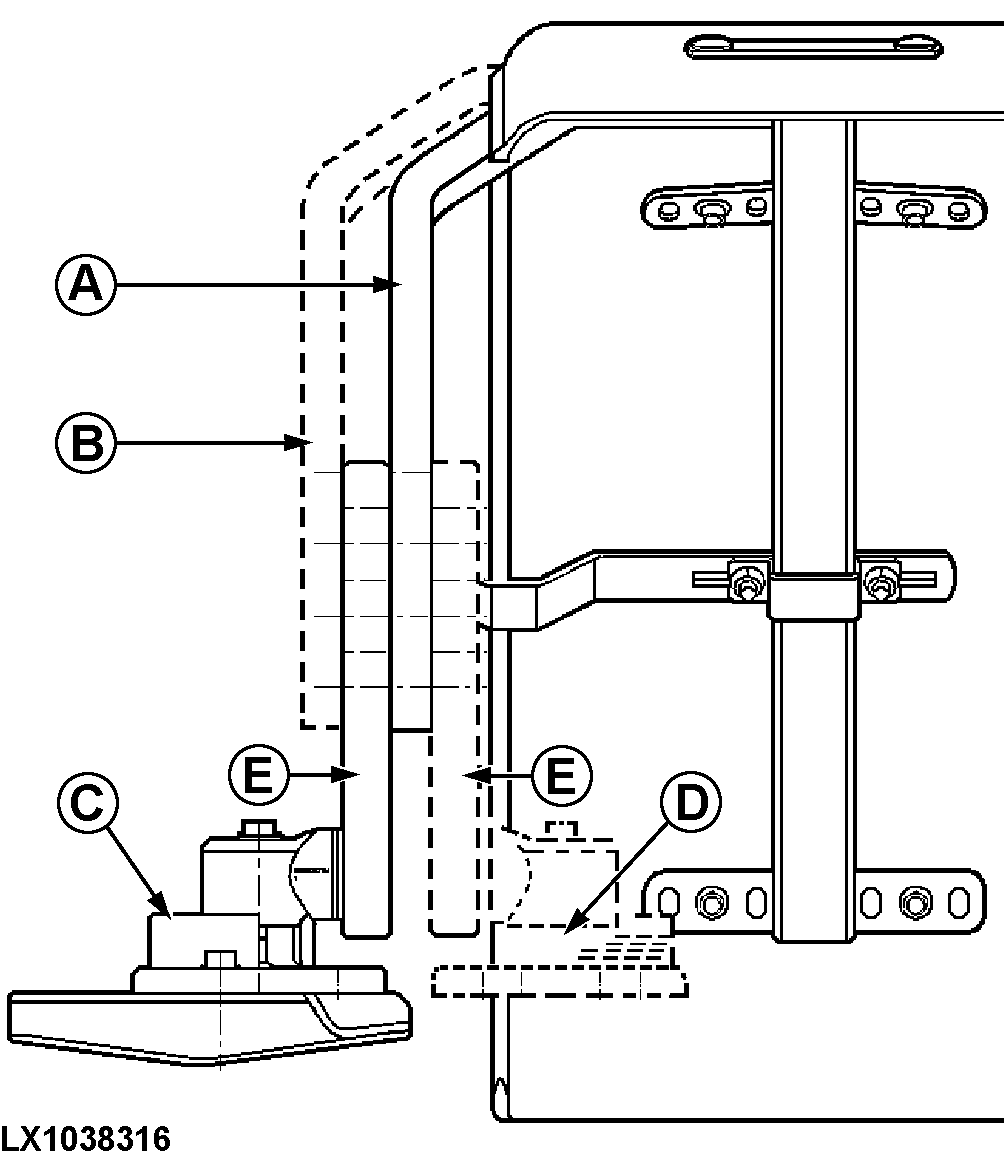

LX1038316-UN-08AUG06

A - Support to adjusting arm (wheel side)

B - Support to adjusting arm (tractor side)

C - Pivot plate (tractor side)

D - Pivot plate (wheel side)

E - Adjusting arm

The fenders may be adjusted individually. Several adjusting positions are possible. Tilt, width and height of the fenders can be adjusted depending on tire size, tread width and steering angle. If the intention is to change between positions C and D, turn the part around (do NOT install it on the other side of the tractor). Then adjust the front-to-rear angle of adjusting arm (E). To make the adjustment, follow this procedure:

1.
   LX1031619-UN-31MAY06


   LX1033894-UN-11MAR04

   Raise front of tractor so that the front wheel drive axle can pivot freely.

---




2. Turn steering wheel in both directions and pivot the axle to determine the most suitable fender mounting position.

3. Adjust fender position so that the minimum clearances (see illustration) are met. There must not be any contact with the tractor frame.

   A = 40 mm (1.57 in.), B = 60 mm (2.36 in.)

4. Adjust fender stop to prevent it from being seized at the edges with steering wheel fully turned and axle pivoting. Make sure that the stop contacts the tractor frame before the fender can hit the frame.

5.
   LX1031620-UN-24APR06

   Also adjust the steering stops to make sure that the wheel does not come into contact with the tractor frame.

---

Tighten the screws to the following torque values:

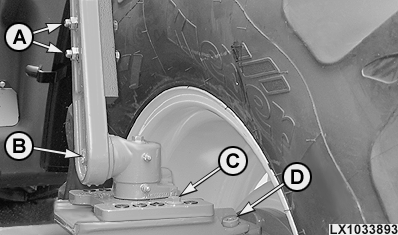

LX1033893-UN-11MAR04

A - Cap screws, support to adjusting arm

B - Cap screw, adjusting arm to joint

C - Cap screws, pivot plate to base

D - Hex. socket screws, base to knuckle housing

Screws (A)..............	140 Nm (105 lb-ft)
Screw (B)..............	300 Nm (220 lb-ft)
Screws (C)..............	140 Nm (105 lb-ft)
Screws (D)..............	190 Nm (140 lb-ft)
