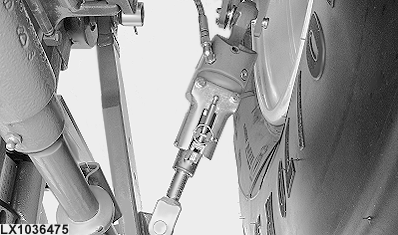

Hydraulic Stabilizer Bars (If Equipped)

LX1036475-UN-23JAN06

LX1038302-UN-06NOV06

LX1038309-UN-26APR06

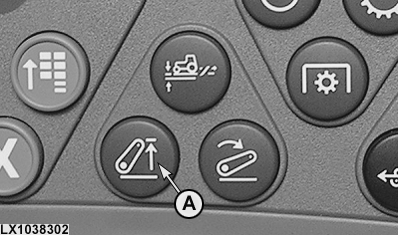

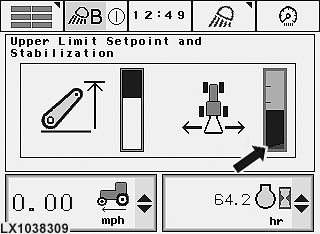

These bars operate automatically. Press button (A) and set the desired ratio of draft-link lock to draft-link lateral sway on the screen. In the upper sector, draft links are locked; in the lower sector, they can sway from side to side.
