Roof Hatch (If Equipped)

LX1038323-UN-27APR06

LX1038324-UN-27APR06

LX1033621-UN-14APR04

LX1033622-UN-14APR04

A - Handle

B - Cover

C - Retaining clip

D - Narrow angle

E - Wide angle

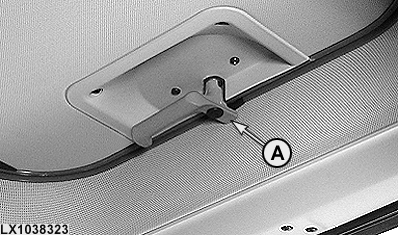

The roof hatch can be opened and closed using handle (A).

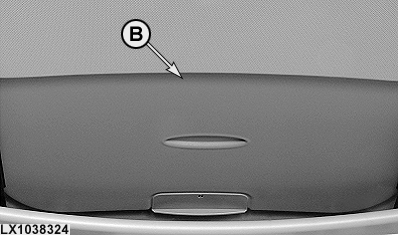

If the roof hatch is equipped with a glass panel, direct sunlight can be prevented from entering by using cover (B).

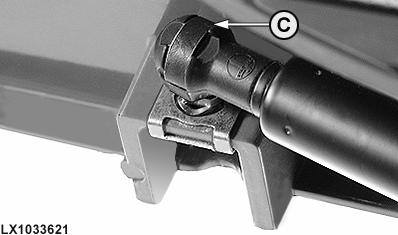

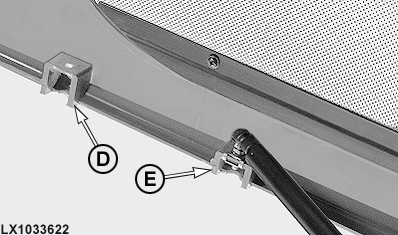

The roof hatch can be adjusted to a narrower or wider angle. To adjust the angle, remove retaining clip (C), pull gas spring from its retainer and remove retainer. Install retainer in the desired position (D) or (E), re-install gas spring and secure with the clip.
