Lights

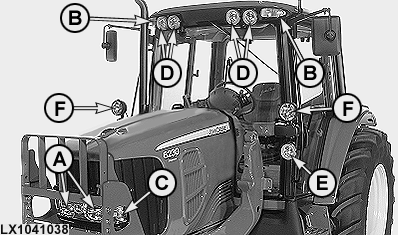

LX1041038-UN-14JUN06

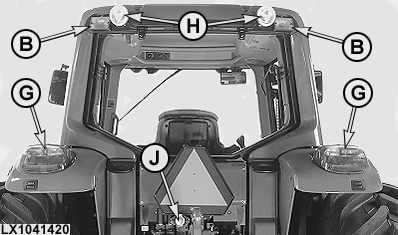

LX1041420-UN-06NOV06

A - Headlights

B - Turn signal and warning lights

C - Front corner worklights¹

D - Front roof worklights

E - Cab frame worklights¹

F - Additional headlights ¹

G - Tail, brake and turn signal lights

H - Rear roof worklights

J - Socket for trailer lighting

NOTE: H9 bulbs must NOT be used in front corner worklights (C).
