Select Standard Speed of Rear PTO (Shiftable PTO)

LX1038310-UN-06NOV06

LX1044973-UN-03MAR08

LX1041054-UN-29JUN06

A - PTO button

B - Indicator lights for PTO speeds

CAUTION: Before engaging the PTO, make sure that selected PTO speed is correct for the implement attached. Incorrect speed can result in serious damage to the implement.

Danger of accidents!

The PTO is engaged and disengaged as described under Operating Power Take-Offs. The PTO must be disengaged to select standard PTO speed.

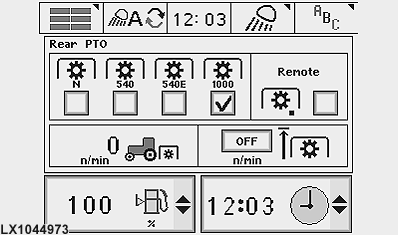

Press button (A) and select the desired speed on the screen (e.g. 1000).

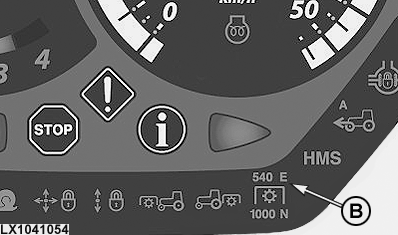

The selected PTO speed is indicated by lights (B).

CAUTION: The engine must be shut off when an implement is being connected.
