Starting the Engine

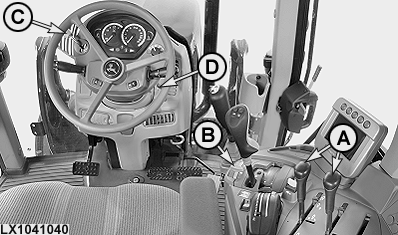

LX1041040-UN-14JUN06

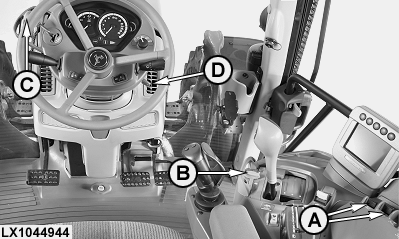

LX1044944-UN-21DEC07

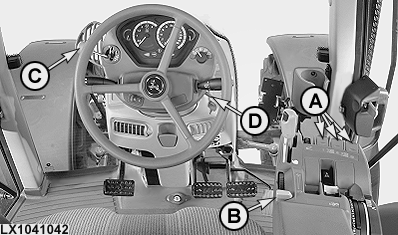

LX1041042-UN-14JUN06

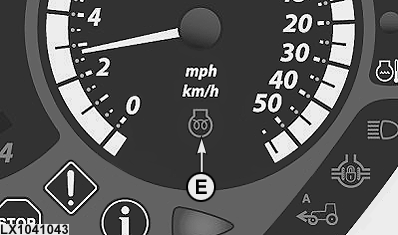

LX1041043-UN-14JUN06

A - SCV Levers

B - Hand Throttle

C - Reverser Lever

D - Main (Key) Switch

E - Glow-Plug Indicator Light

CAUTION: Never operate the engine in a closed building. Make sure there is plenty of ventilation. Danger of asphyxiation!

1. Set selective control valve levers (A) to neutral position.
2. Set reverser lever (C) to neutral position (or to positions N or P on tractors with IVT transmission).
3. Turn key in main switch (D) one position to the right. Wait until light (E) goes out.
4. Turn key in main switch (D) clockwise to end position. As soon as engine starts, release key.

Do not operate starting motor for more than 30 seconds at a time. Turn key in main switch to zero. Wait at least one minute before attempting to start again.

After starting the engine, wait 2 seconds before operating switches or controls since the electronic system of the tractor is checked.

IMPORTANT: During the warm-up phase, operate the tractor at moderate load only. Once operating temperature has been reached (see temperature gauge), full power becomes available.

NOTE: The engine control unit (ECU) allows the engine to run at a higher slow idle speed (1050 rpm) until coolant temperature reaches 20°C (68°F).
