Rear Wheel Adjusting —Cast

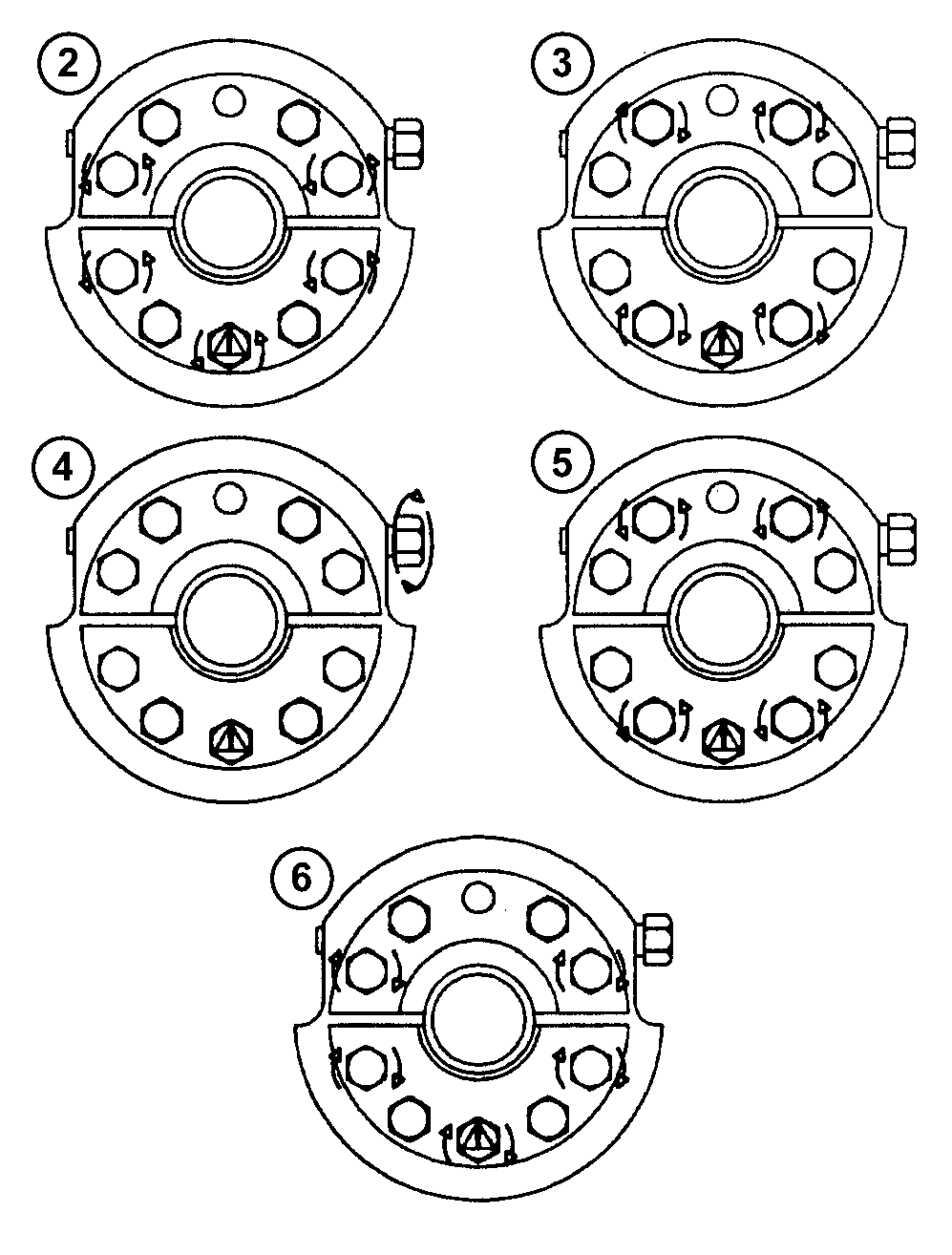

RW26332-UN-24JUN99

CAUTION: Avoid personal injury. NEVER operate the engine with transmission in gear and rear wheels off the ground. MFWD wheels could pull rear wheels off support. MFWD must be disengaged and transmission in NEUTRAL to rotate axle.

1. Raise the tractor on level ground and turn wheel so rack on the axle is upward.

2. Loosen the lower hub center bolt against the retaining nut. Loosen the outer hub sleeve bolts.

3. Tighten the inner jack screws on the upper and lower hub sleeves to loosen sleeves. Tighten jack screws up to 500—600 Nm (370—440 lb-ft) if necessary.

   NOTE: Strike end of axle with a heavy hammer and use penetrating oil if sleeves are difficult to break loose.

4. Turn adjusting screw to slide wheel to desired position. Observe tread width limitations.

5. Loosen the jack screws all the way against the stop.

6. CAUTION: Never operate tractor with a loose rim, wheel, or hub.

   IMPORTANT: Keep the face of hub sleeves even to prevent hub breakage or bolt loosening.

   Tighten hub sleeve bolts to 204 Nm (150 lb-ft) beginning with the center bolt in the lower sleeve, then crisscrossing the other bolts. Retighten bolts to 410 Nm (300 lb-ft) using the same sequence.

   Drive tractor a minimum of 100 meters (100 yd) and tighten bolts to 600 Nm (445 lb-ft).

   Retighten all bolts after working 3 HOURS and again after 10 HOURS.
