Rear Tread Settings for Single 16-Position Wheels — Hi-Crop Tractor — Flanged Axle

RW26518-UN-01SEP99

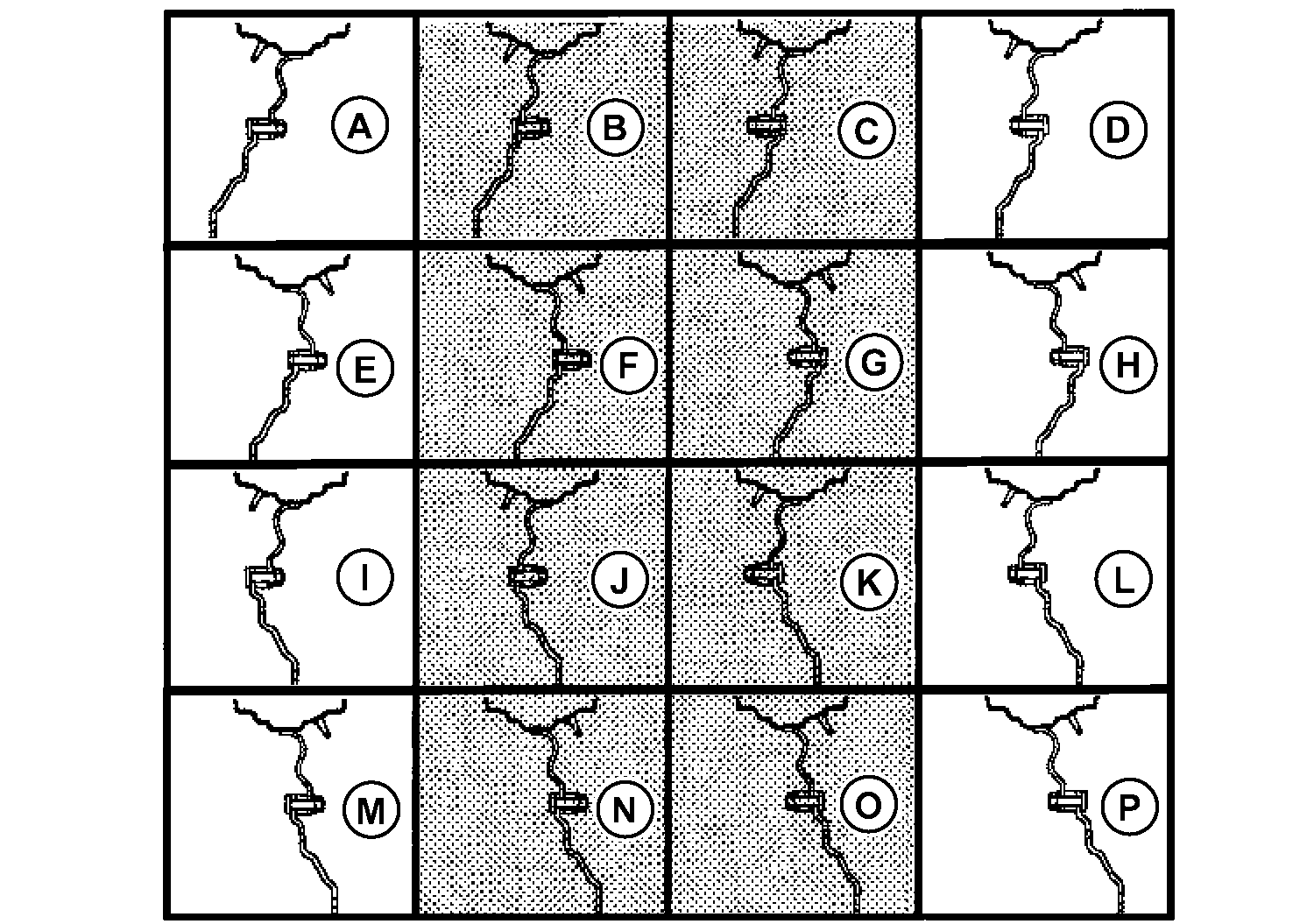

Steel single wheel positions for 320/90 tires as viewed from behind left rear tire. Positions in the shaded areas are not used.

	STANDARD FLANGED AXLE			LONG FLANGED AXLE
	Valve Stem Out	Valve Stem In		Valve Stem Out	Valve Stem In
A—	—	1524 mm (60 in.)	A—	—	1930 mm (76 in.)
B—	—	—	B—	—	—
C—	—	—	C—	—	—
D—	—	1626 mm (64 in.) 1	D—	—	2032 mm (80 in.)
E—	1727 mm (68 in.)	—	E—	2134 mm (84 in.)	—
F—	—	—	F—	—	—
G—	—	—	G—	—	—
H—	—	1829 mm (72 in.)	H—	—	2235 mm (88 in.)
I—	1930 mm (76 in.)	—	I—	2337 mm (92 in.)	—
J—	—	—	J—	—	—
K—	—	—	K—	—	—
L—	—	2032 mm (80 in.)	L—	—	2438 mm (96 in.)
M—	2134 mm (84 in.)	—	M—	Not Recommended	—
N—	—	—	N—	—	—
O—	—	—	O—	—	—
P—	2235 mm (88 in.)	—	P—	Not Recommended	—
