Fill Fuel Tank

TS202-UN-23AUG88

RXA0090974-UN-04OCT06

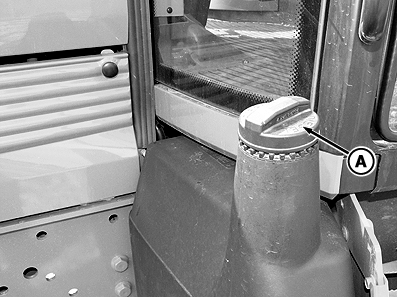

Small Fuel Tank

RXA0090976-UN-04OCT06

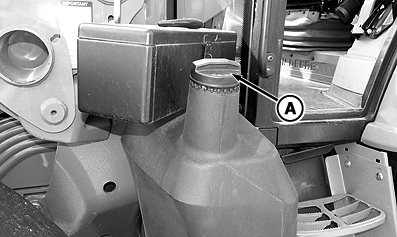

Large Fuel Tank

A - Fuel Tank

CAUTION: PREVENT PERSONAL INJURY. Do not refuel the machine while smoking or when near open flame or sparks.

Always stop engine before refueling machine. Fill fuel tank outdoors.

Prevent fires by keeping machine clean of accumulated trash, grease, and debris. Always clean up spilled fuel.

Fill fuel tank (A) at end of each day. This prevents condensation in tank as moist air cools.

NOTE: Mixing diesel fuels, No. 1 with No. 2, will not lower the Cold Filter Plugging Point (CFPP), when operating in cold temperatures. These fuels do not blend. Drain fuel tank and use No. 1 diesel fuel.
