AutoTrac™ Assisted Steering System (If Equipped)

NOTE: Refer to AutoTrac Operator's Manual for detailed information.

RXA0090990
RXA0090990-UN-04OCT06

StarFire Receiver

RXA0084304
RXA0084304-UN-26SEP05

Original GreenStar Display/Mobile Processor

RXA0090992
RXA0090992-UN-04OCT06

GS2 2100 Display

RXA0084306
RXA0084306-UN-26SEP05

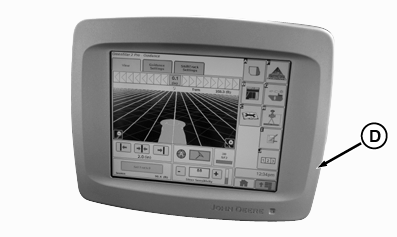

GS2 2600 Display

A - StarFire Receiver

B - Original GreenStar Display/Mobile Processor

C - GS2 2100 Display

D - GS2 2600 Display

AutoTrac utilizes tractor's steering system control unit (SSU), StarFire™ receiver (A), and GreenStar™ display (B), (C), or (D) to assist operator in steering tractor.

Operator must turn tractor at end of each pass and steer around any obstacles in field.

Turn steering wheel manually to disengage AutoTrac and obtain manual steering control.

AutoTrac is a trademark of Deere & Company
StarFire is a trademark of Deere & Company
GreenStar is a trademark of Deere & Company

BB92646,00002BA-19-20061114
