GreenStar™ System Connections and Mounting Locations

1. NOTE: See your John Deere dealer for wiring harnesses needed to connect GreenStar displays and StarFire receiver to tractor.


   RXA0091025-UN-06OCT06

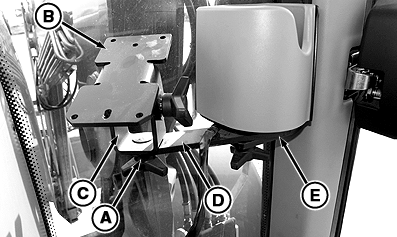

   Original GreenStar Display/Mobile Processor and GS2 2600 Display Mounting Location


   RXA0091027-UN-06OCT06


   RXA0091029-UN-06OCT06

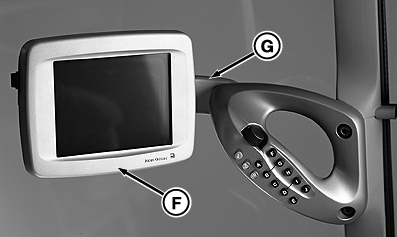

   GS2 2100 Display Mounting Location


   RXA0091031-UN-06OCT06


   RXA0091023-UN-06OCT06

   A - Adjusting Knobs

   B - Bracket

   C - Bracket

   D - Bracket

   E - Bracket

   F - GS2 2100 Display

   G - Mounting Arm

   H - StarFire Receiver Mounting Bracket

   I - StarFire Receiver Wiring Harness Connector

   J - Display Wiring Harness Connectors

   K - Display Wiring Harness Connector

   L - GS2 2100 Display Mounting Bracket

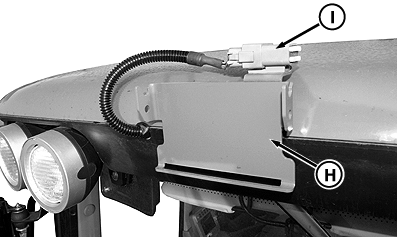

   Install StarFire™ receiver to mounting bracket (H).

---




2. Connect harness connector (I) to StarFire receiver connector.

3. Install GreenStar display.

   NOTE: Additional harnesses may be needed to connect display to wiring harness connectors (J) on tractor. See your John Deere dealer for details.

   Original GreenStar Display/Mobile Processor and GS2 2600 Display:

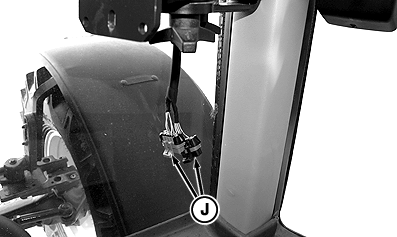

   1. Connect Original GreenStar display/mobile processor or GS2 2600 display to wiring harness connectors (J).
   2. Install Original GreenStar display/mobile processor or GS2 2600 display to bracket (B).
   3. Loosen knobs (A) to adjust brackets (B), (C), (D), and (E) for desired display position.



   GS2 2100 Display:

   1. NOTE: Additional harnesses may be needed to connect display to wiring harness connector (K) on tractor. See your John Deere dealer for details.
      Connect wiring harness connector (K) to GS2 2100 display (F).
   2. Install GS2 2100 display (F) to bracket (L) on arm (G).
   3. Rotate GS2 2100 display (F) and arm (G) to desired position.
