Hydraulic Center Link (If Equipped)

RXA0091045-UN-06OCT06

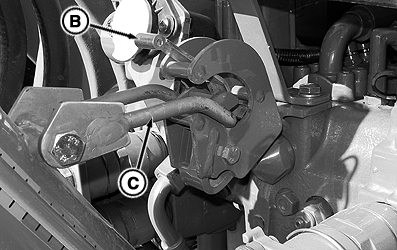

RXA0091043-UN-06OCT06

A - Hydraulic Center Link

B - Lever

C - Storage Bracket

Length of hydraulic center link (A) can be adjusted from operator's seat using one SCV.

Push lever (B) and lift bracket (C) to remove hydraulic center link from storage position.

Clean all moving parts and lubricate with commercial grease as needed to prevent parts from seizing.
