Hydraulic Trailer Brakes

LX1036282-UN-26APR06

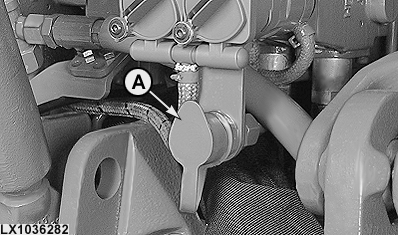

A - Hydraulic Trailer Brake Coupler

IMPORTANT: Absolute cleanliness is essential when connecting hydraulic trailer brake hose. Dirt and contaminates can be introduced into hydraulic system if connections are not clean causing damage to hydraulic components.

Remove dust cover from coupler (A).

Connect pressure hose to coupler.

Press down on brake pedals to operate hydraulic trailer brake. Braking effect depends on pressure applied to brake pedals.

CAUTION: Never exceed a speed of 25 km/h (15 mph) when travelling with trailers equipped with hydraulic trailer brakes.

IMPORTANT: Observe following points to prevent undue wear on brakes:

Make sure pressure hose is connected.

When driving downhill, select the same gear you would for driving uphill.

Check hydraulic trailer brake regularly to make sure that it is functioning correctly.
