Two-Wheel Drive Front Axle Tread Settings — With Extensions

RW21366A-UN-02AUG99

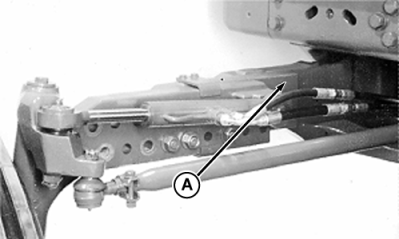

A - Adjustable Front Axle

Adjustable front axle (A) has seven tread settings with extensions.

Tire Size	Valve Stem Location	Axle Hole Position
		1	2	3	4	5	6	7
11.00-16	Out	1960 mm (77.0 in.)	2060 mm (81.0 in.)	2160 mm (85.0 in.)	2265 mm (89.0 in.)	2365 mm (93.0 in.)	2465 mm (97.0 in.)	2570 mm (101.0 in.)
14L-16.1	Out	2010 mm (79.0 in.)	2110 mm (83.0 in.)	2210 mm (87.0 in.)	2315 mm (91.0 in.)	2415 mm (95.0 in.)	2515 mm (99.0 in.)	2620 mm (103.0 in.)
11.00-20	Out	1950 mm (76.8 in.)	2050 mm (80.8 in.)	2150 mm (84.8 in.)	2255 mm (88.8 in.)	2355 mm (92.8 in.)	2455 mm (96.8 in.)	2555 mm (100.8 in.)
