Change Oil In Front-Wheel Drive Axle Housing

LX1029225-UN-15APR03

LX1029226-UN-15APR03

CAUTION: If the oil is hot, it may be under pressure. Remove drain screw slowly.

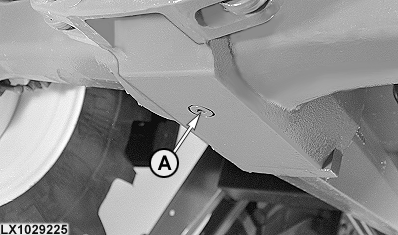

1. Remove drain screw (A) and drain oil into a suitable container.

2. Re-install drain screw and tighten to 90 Nm (66 lb.-ft.).

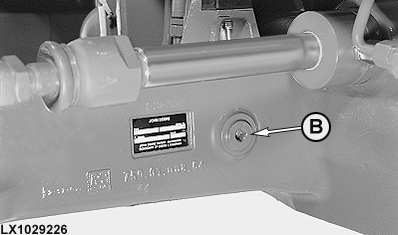

3. Remove oil level/filler plug (B). Fill with fresh oil. The oil level must be up to the filler hole. Re-install plug.

For capacities, see Specifications.

NOTE: Location of screws varies depending on axle type.

Recommended oil	Hy-Gard™ transmission/hydraulic oil. See also Section 80 (Fuel, Lubricants, Hydraulic Oil and Coolant).
Capacity	8.2 L (2.2 US.gal.)
