Lubricating the Three-Point Hitch

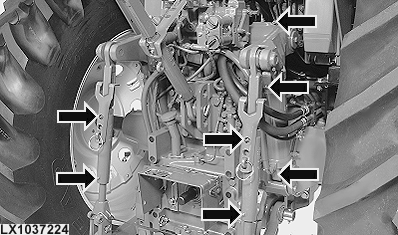

LX1037224-UN-02NOV05

Lubricate grease fittings with several strokes of grease gun. Use John Deere multi-purpose grease.

NOTE: The grease fittings on the second lift cylinder and second lift link are not visible in this illustration.
