Lubricating Front Axle and U.J. Shafts (Tractors with Front-Wheel Drive)

LX1038360-UN-18MAY06

Final drive

LX1038361-UN-31MAY06

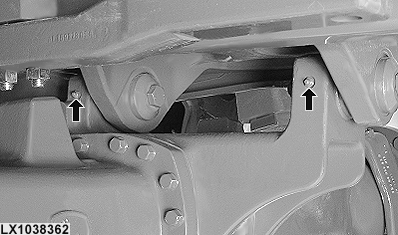

Suspended axle

LX1038362-UN-07OCT10

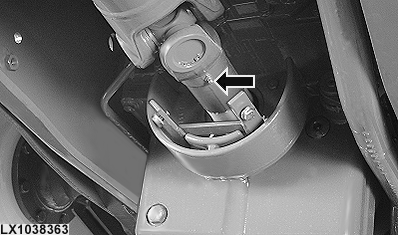

LX1038363-UN-18MAY06

Drive shaft (rear)

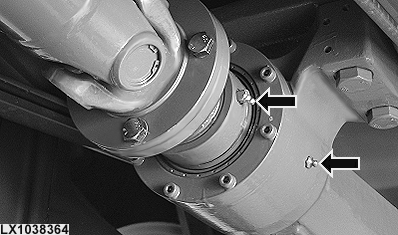

LX1038364-UN-18MAY06

Drive shaft (front)

IMPORTANT: Carry out this service after every ten hours of operation when working under very wet and muddy conditions.

Apply John Deere multi-purpose grease to the grease fittings on the final drives (two on each drive), on the axle bridge (with suspended axle, one fitting on each side of tractor), on the rear drive shaft and the front drive shaft (suspended axle only).

IMPORTANT: Thoroughly clean all grease fittings prior to greasing. Replace damaged grease fittings immediately.
