Changing Engine Oil

LX1019669
LX1019669-UN-17SEP99

LX1041438
LX1041438-UN-20NOV06

LX1041430
LX1041430-UN-17NOV06

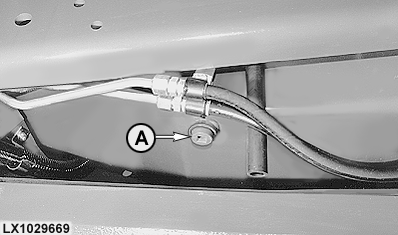

A - Oil drain screw

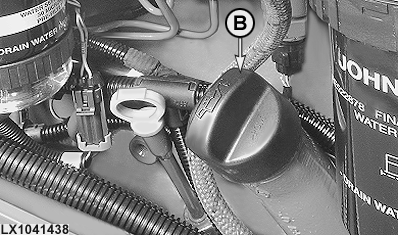

B - Oil filler neck

IMPORTANT: Use oil with a viscosity suitable for the relevant season.

NOTE: Carry out first oil change after first 100 hours of operation.

Drain oil with engine shut off, but with engine oil still warm.

  1. Remove drain screw (A).

  2. While crankcase is draining, replace filter element.

  3. Reinstall drain screw and tighten to 50 Nm (37 lb-ft). Use a new seal ring.

  4. Fill crankcase with fresh oil of proper viscosity at filler neck (B). See section “Fuel, Lubricants, Hydraulic Oil and Coolant”. Capacity is approx. 19.5 liters (5.2 U.S.gal.).

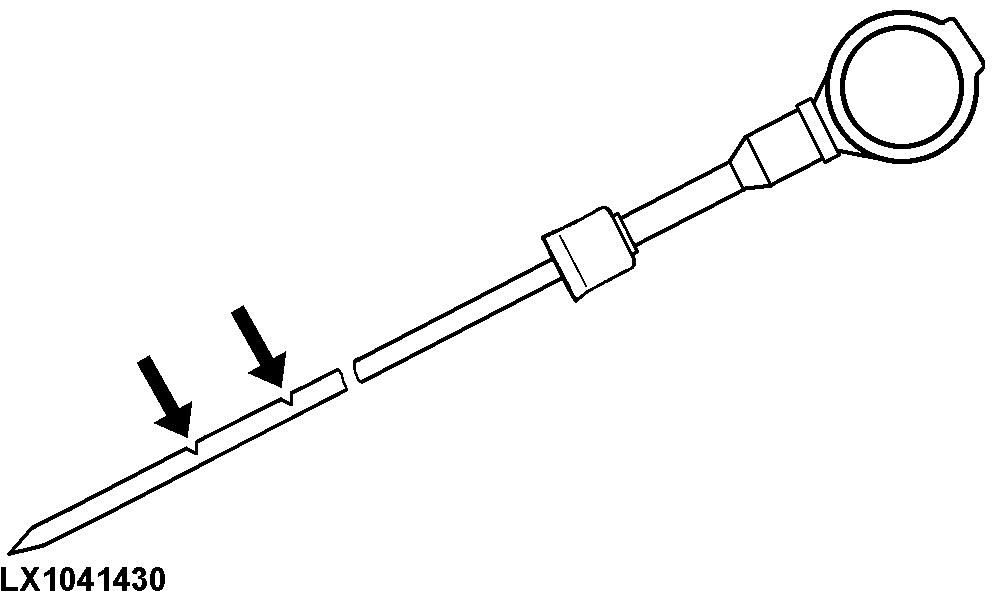

  5. Check the oil level. Oil should be up to the top mark on the dipstick. If necessary, top up with oil.

  6. Run engine for a short time and check for leaks at filter base and drain screw.

  7. Shut off the engine.

  8. Check oil level once again. It must be up to the top mark on the dipstick.
